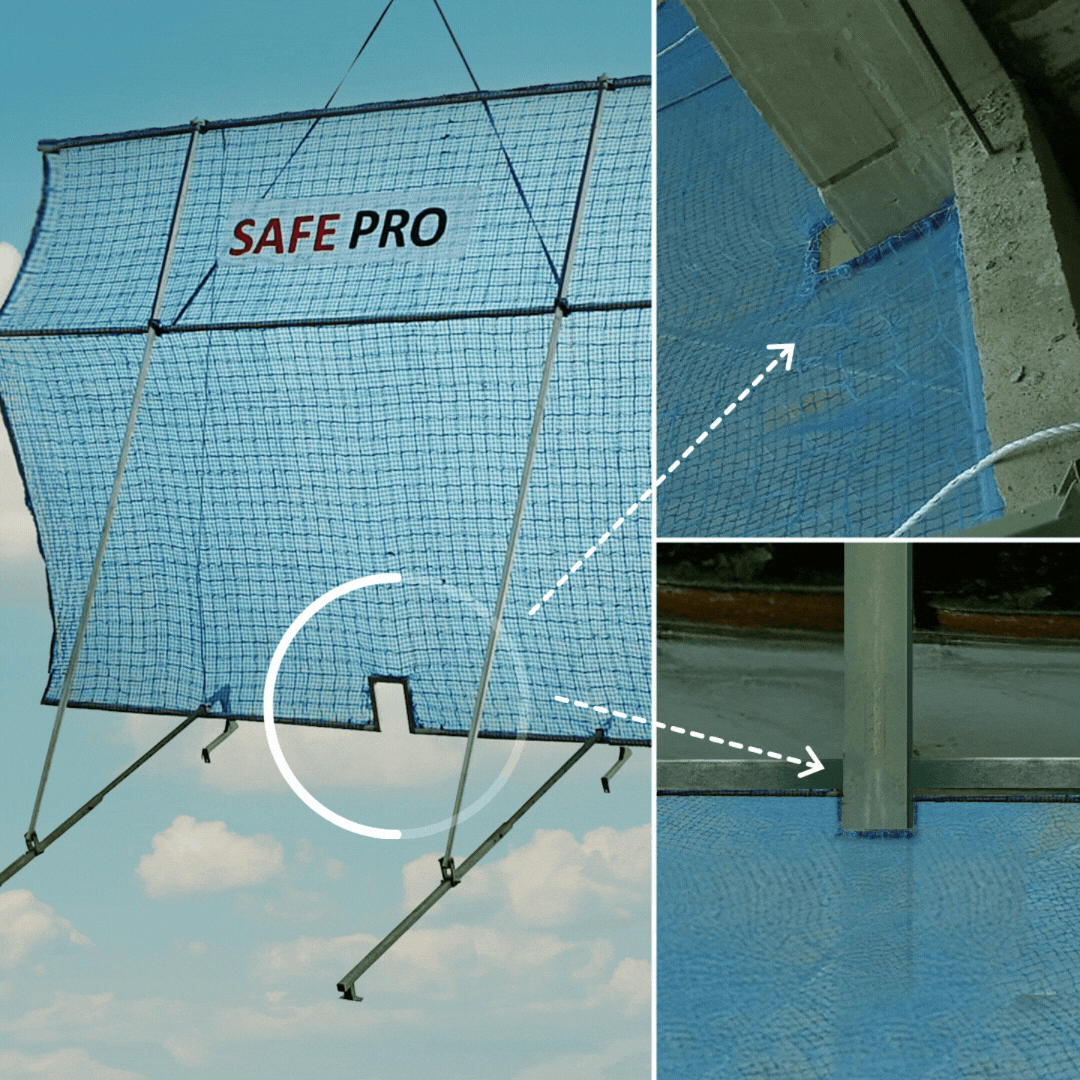

Safety Net Fan System
SNF (Safety Net Fan) system is an engineering fall protection solution for high-rise constructions which gets installed horizontally on the outer periphery of construction structures in order to safeguard against falling personnel, material, and keep lower levels and property secure from fall hazards.
With over 12+ years of experience, SAFEPRO fuses engineering and unparalleled safety to design some of the safest fall protection systems, helping the vertically growing construction industry by eliminating hazardous falls.
We know the ins and outs, the nitty-gritties of construction fall protection like the back of our hand. SNF and SAFEPRO go hand in hand.
Technical Specifications
These specs are what turbocharge our SNF to achieve unequalled performance. Pro tip: work@height teams achieve unequalled peace of mind trusting SAFEPRO as their guardian against falls.
Specification | Details |
|---|---|
Compliance | EN 1263-1 & 2 |
Impact Load Capacity | 100 kg drop from 7 mtr |
Outer Projection | 4.6 mtr from structure |
Frame MOC | Aluminium alloy |
Net MOC | Three-layered copolymer netting |
Slab Attachment | Custom built high-strength steel |
Standard Sizes | 6 mtr x 4.6 mtr (outer projection) 4.2 mtr x 4.6 mtr (outer projection) |
Assembly | One time at site |
Regular Installation | Two anchor fasteners for one frame |
Dead Wall Shifting | Custom built attachments for EPS |
Debris Cleaning | Foldable frame |
Features & Advantages

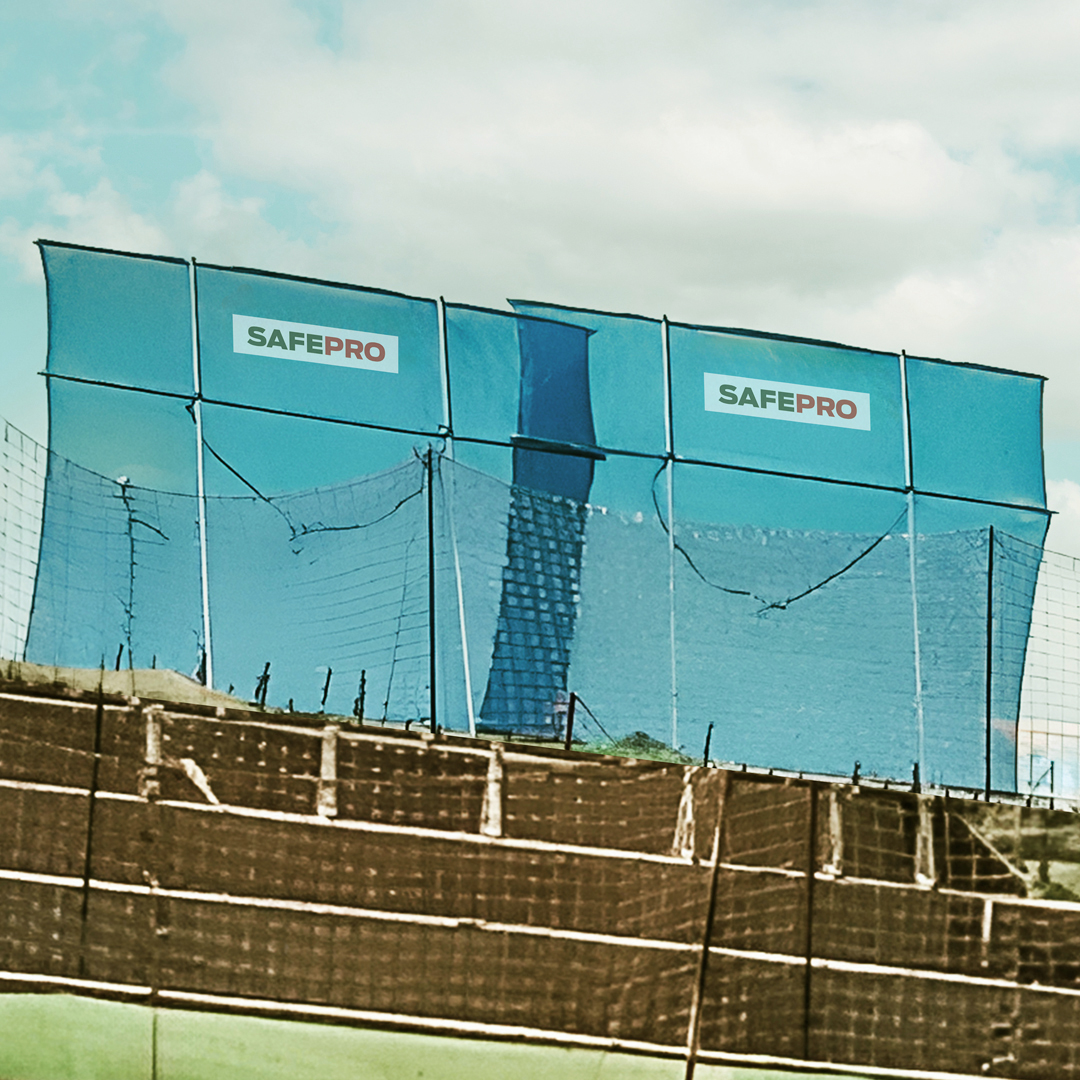

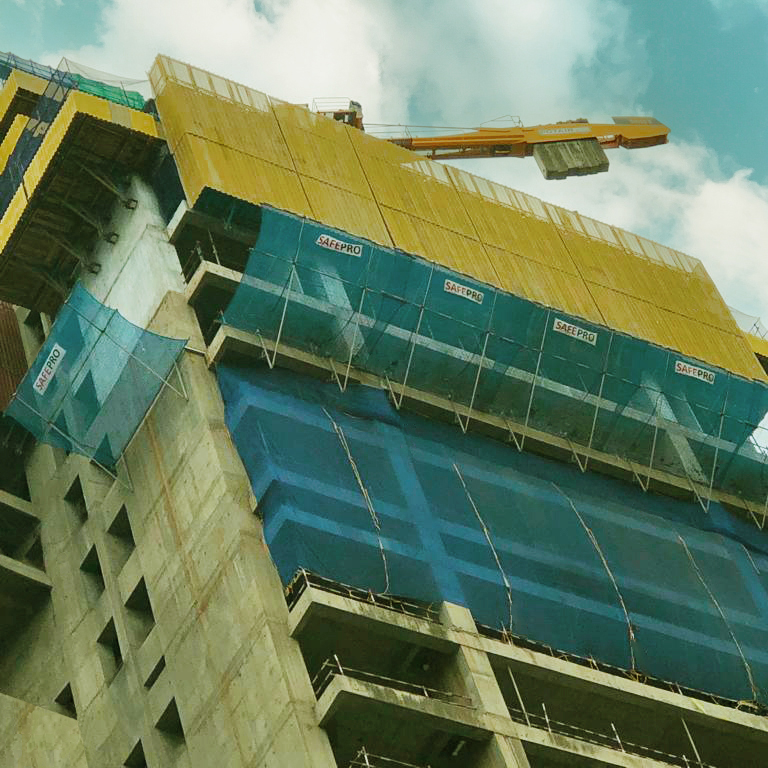

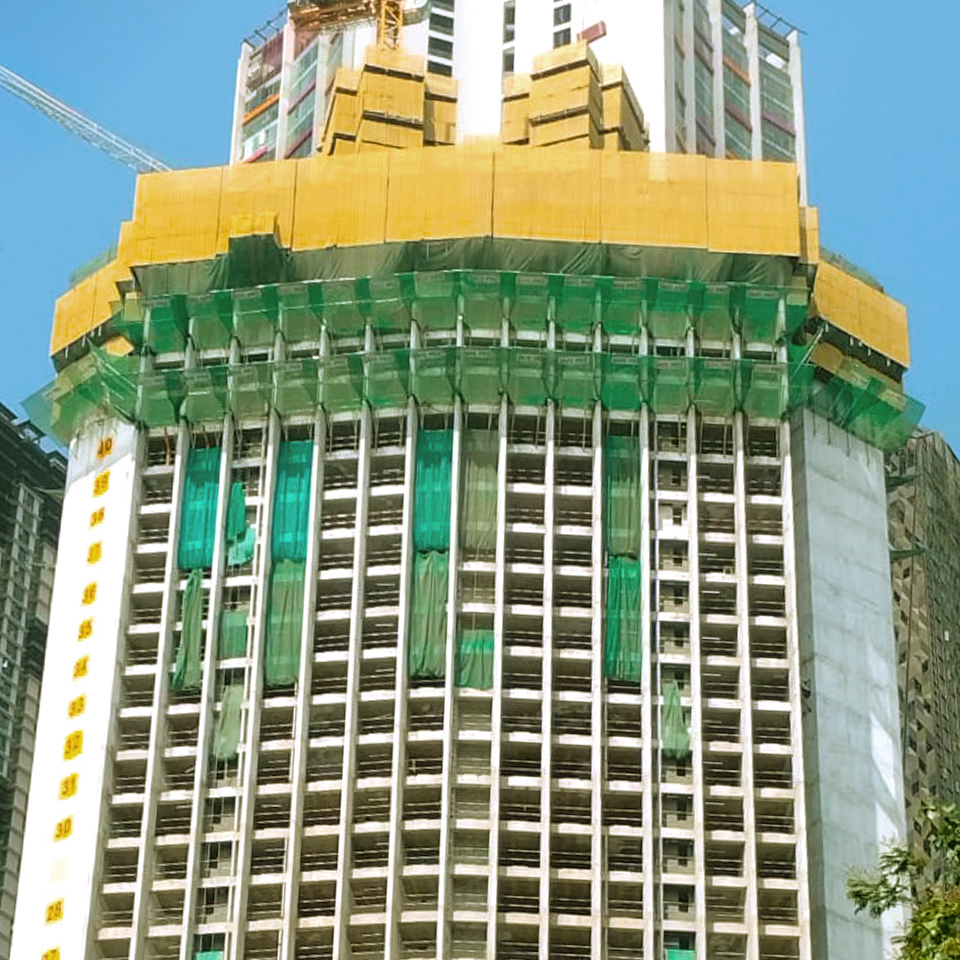

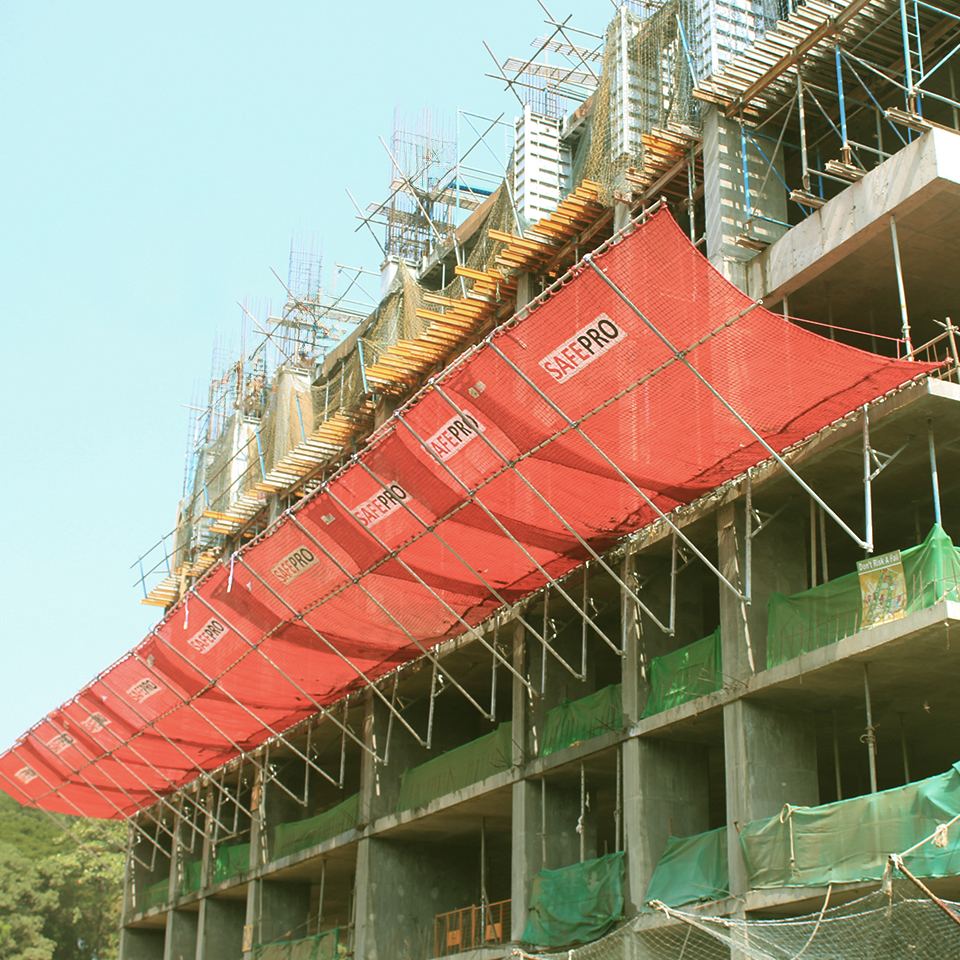

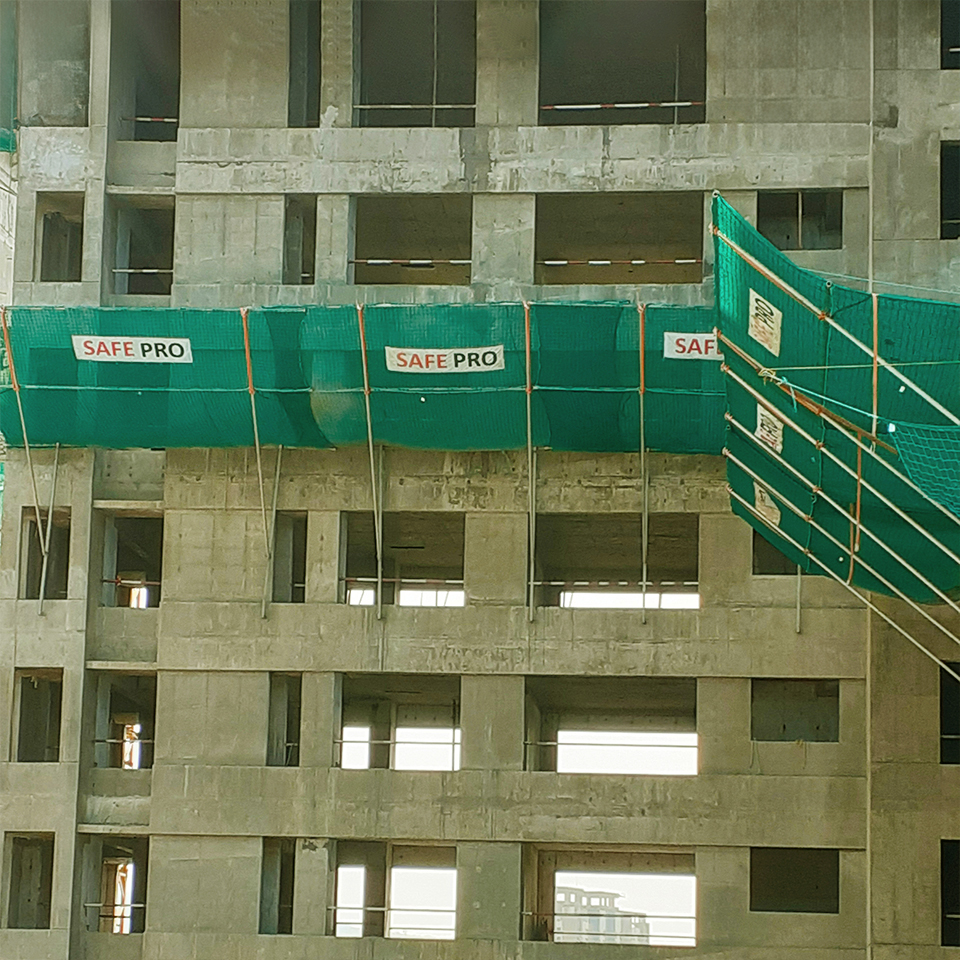

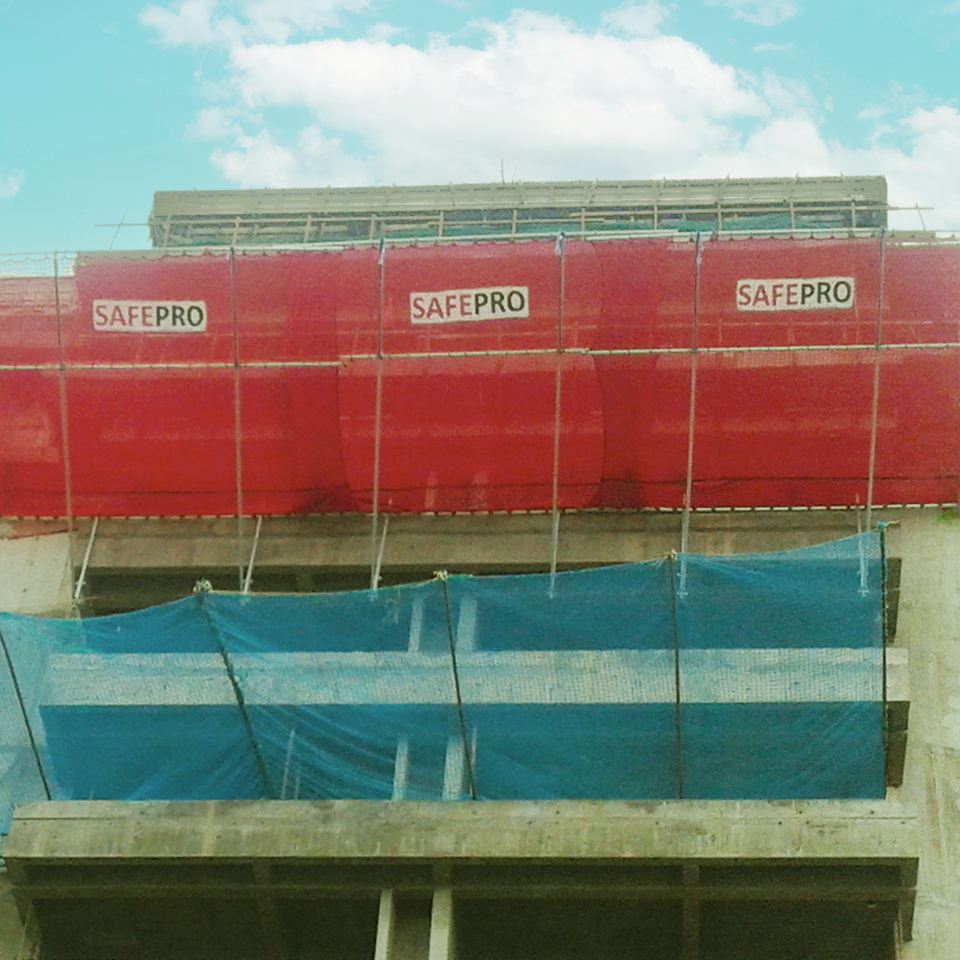

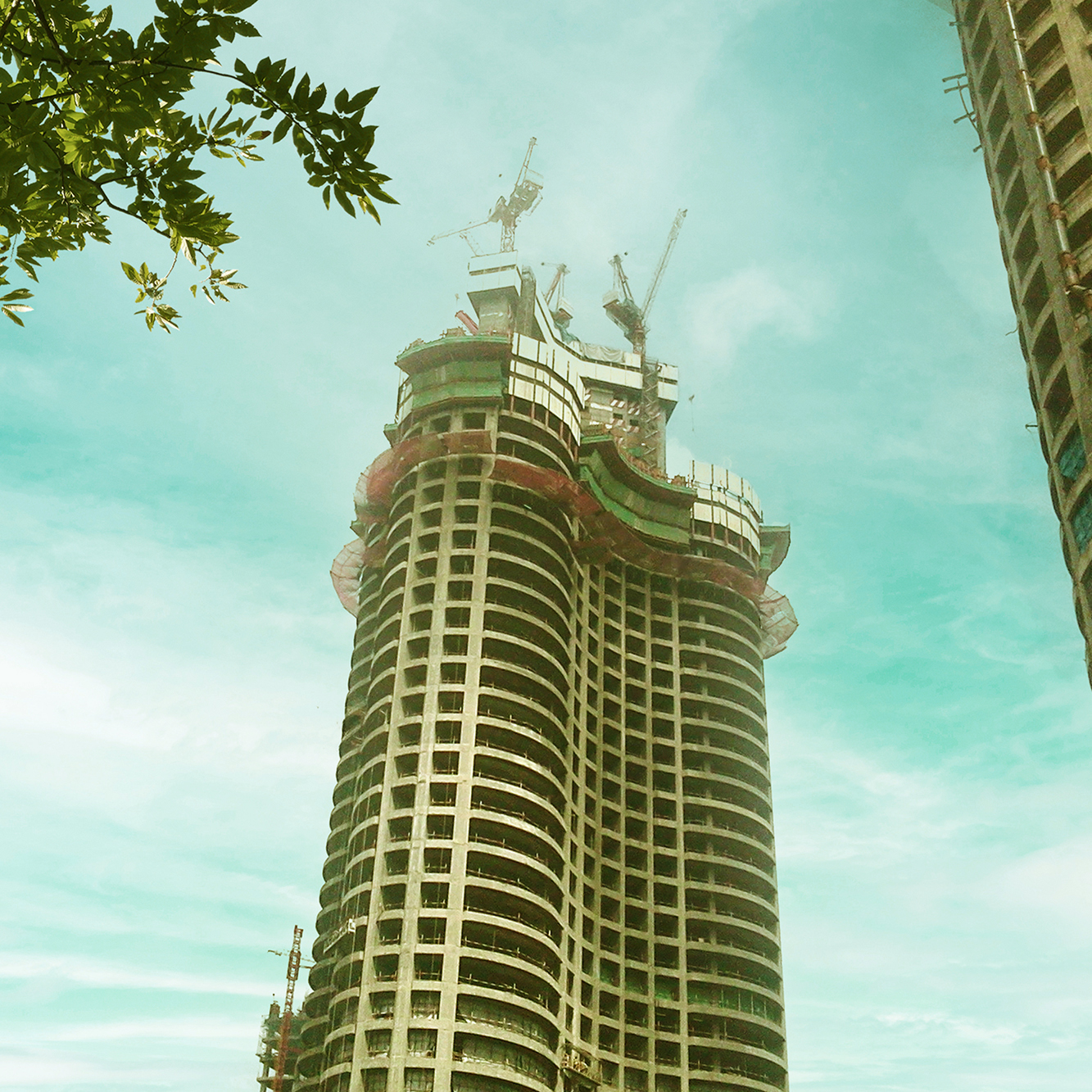

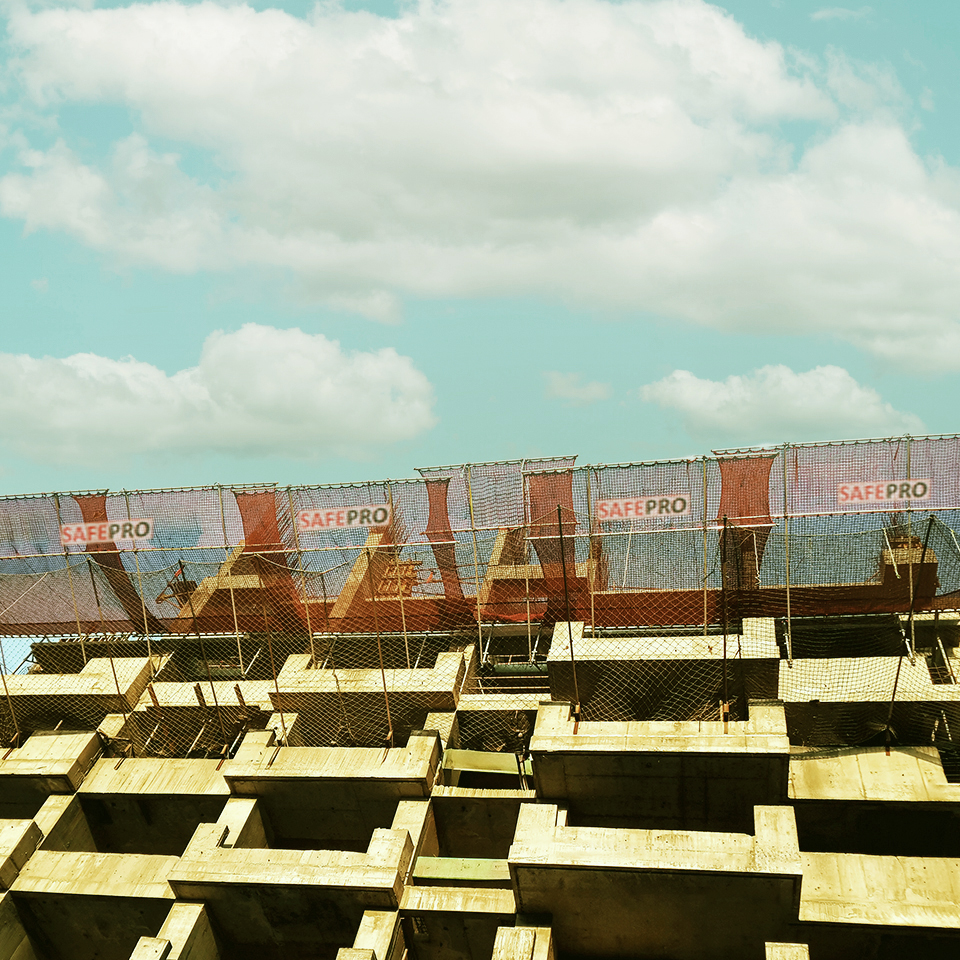

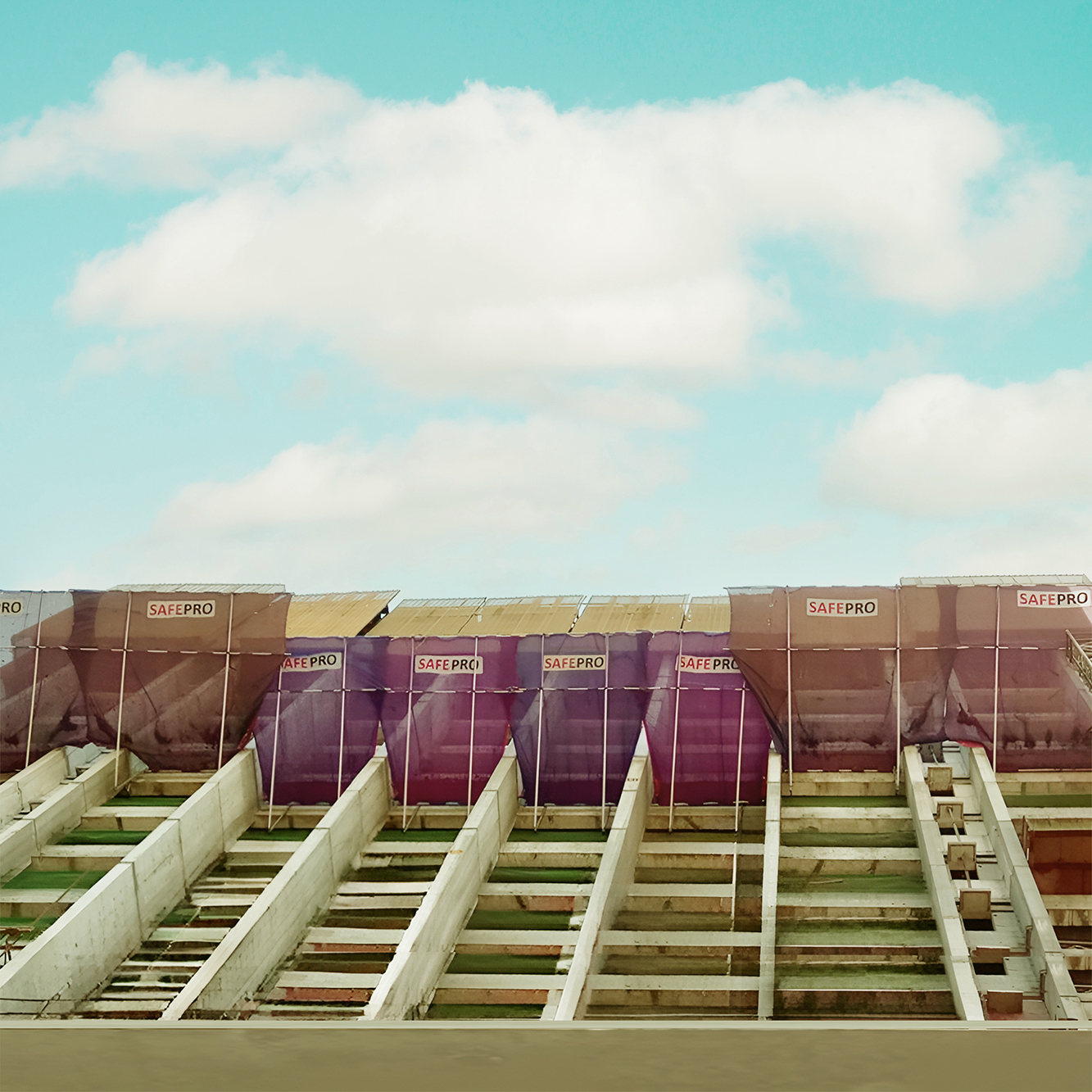

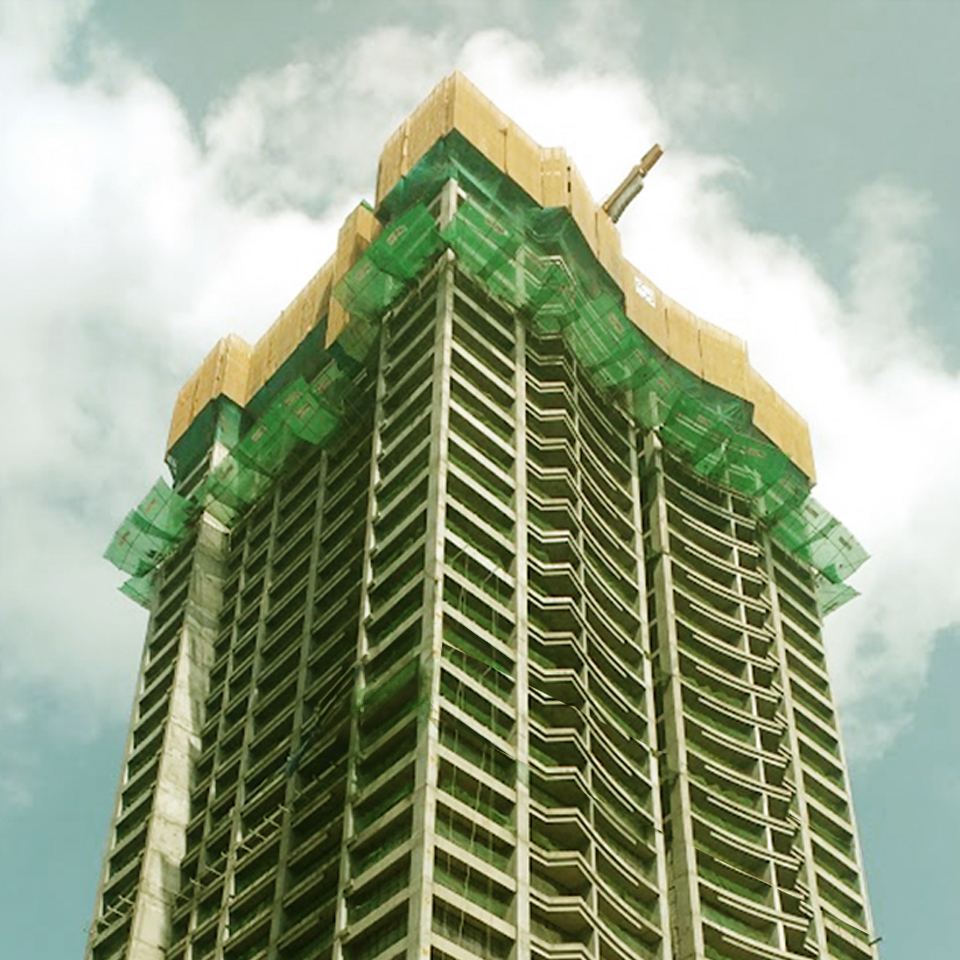

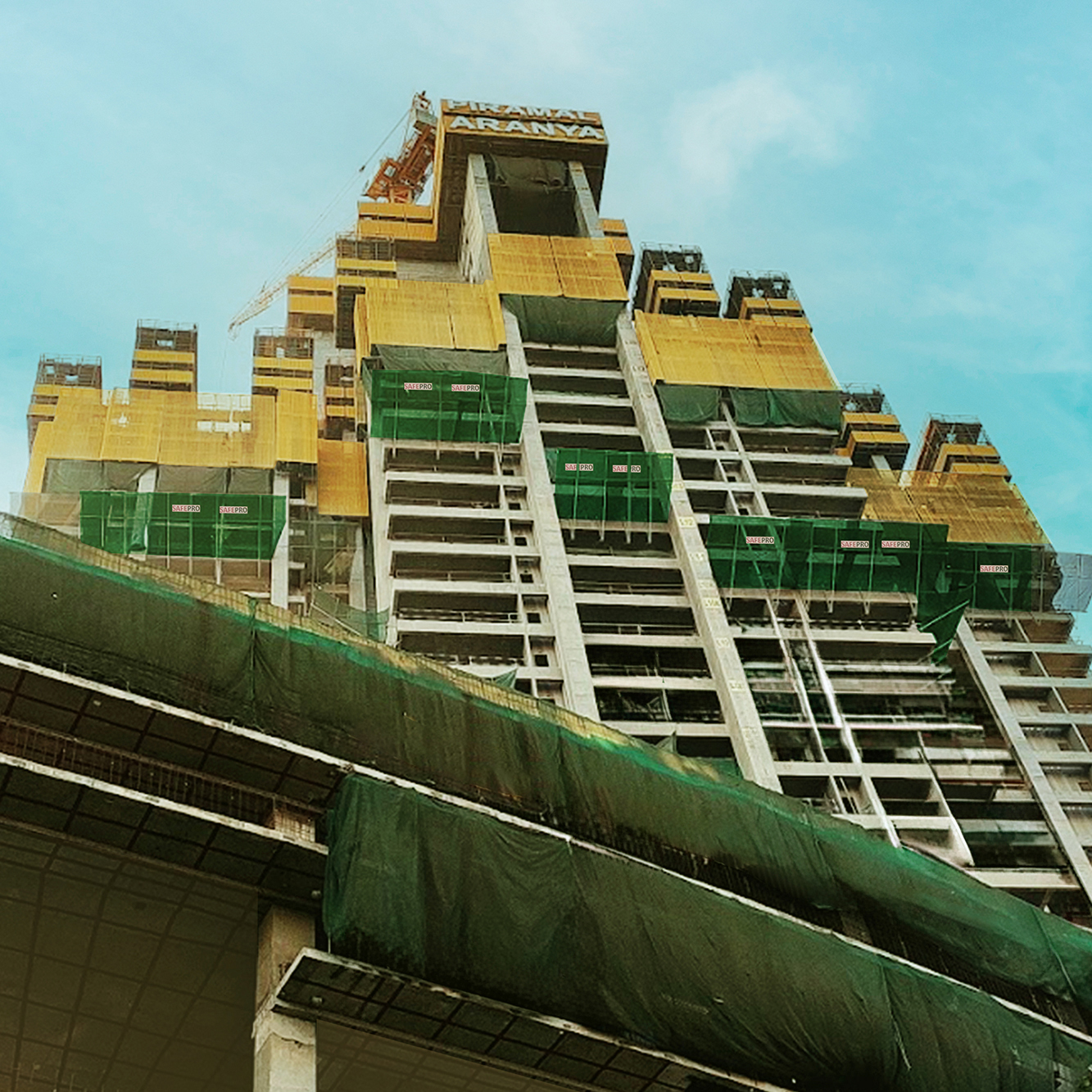

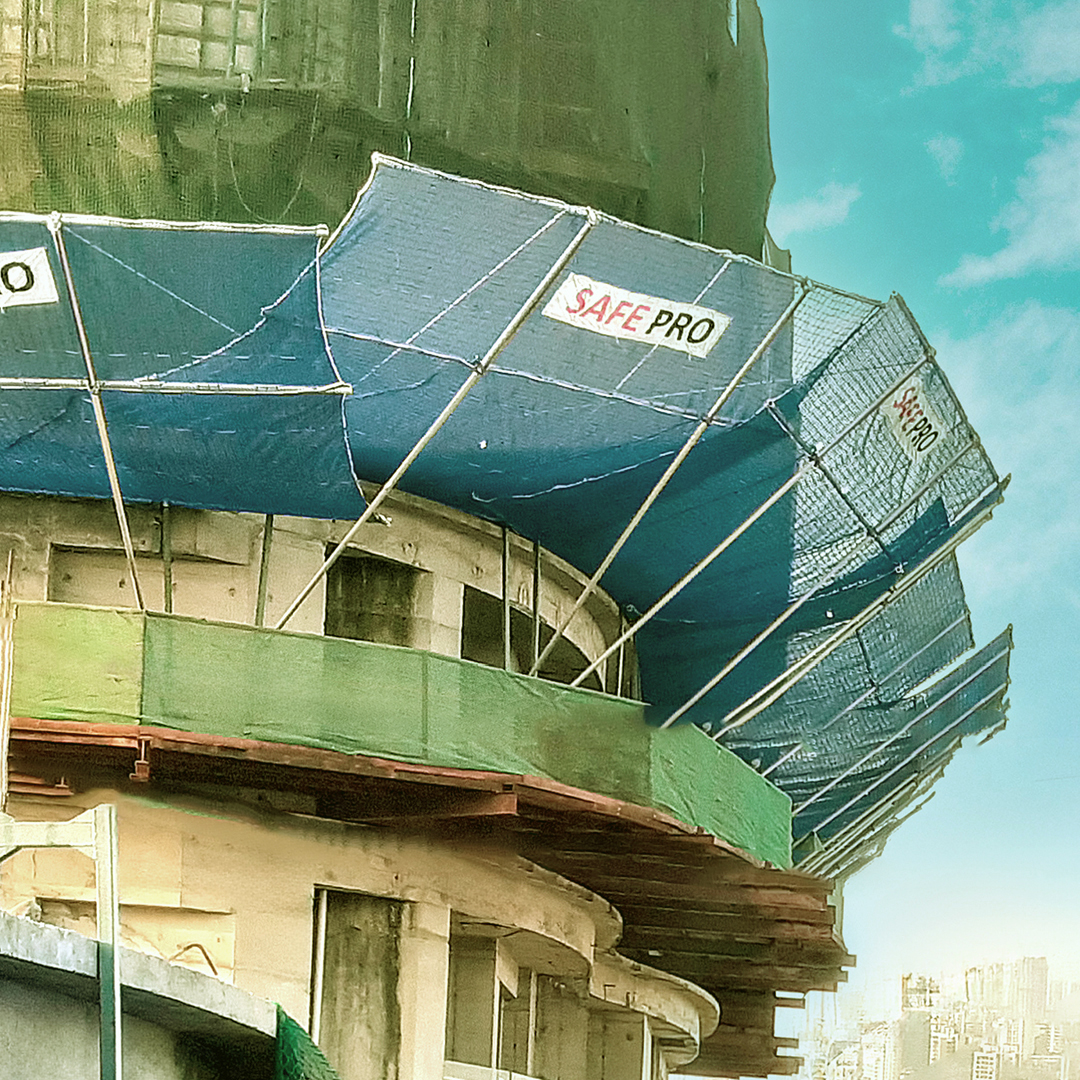

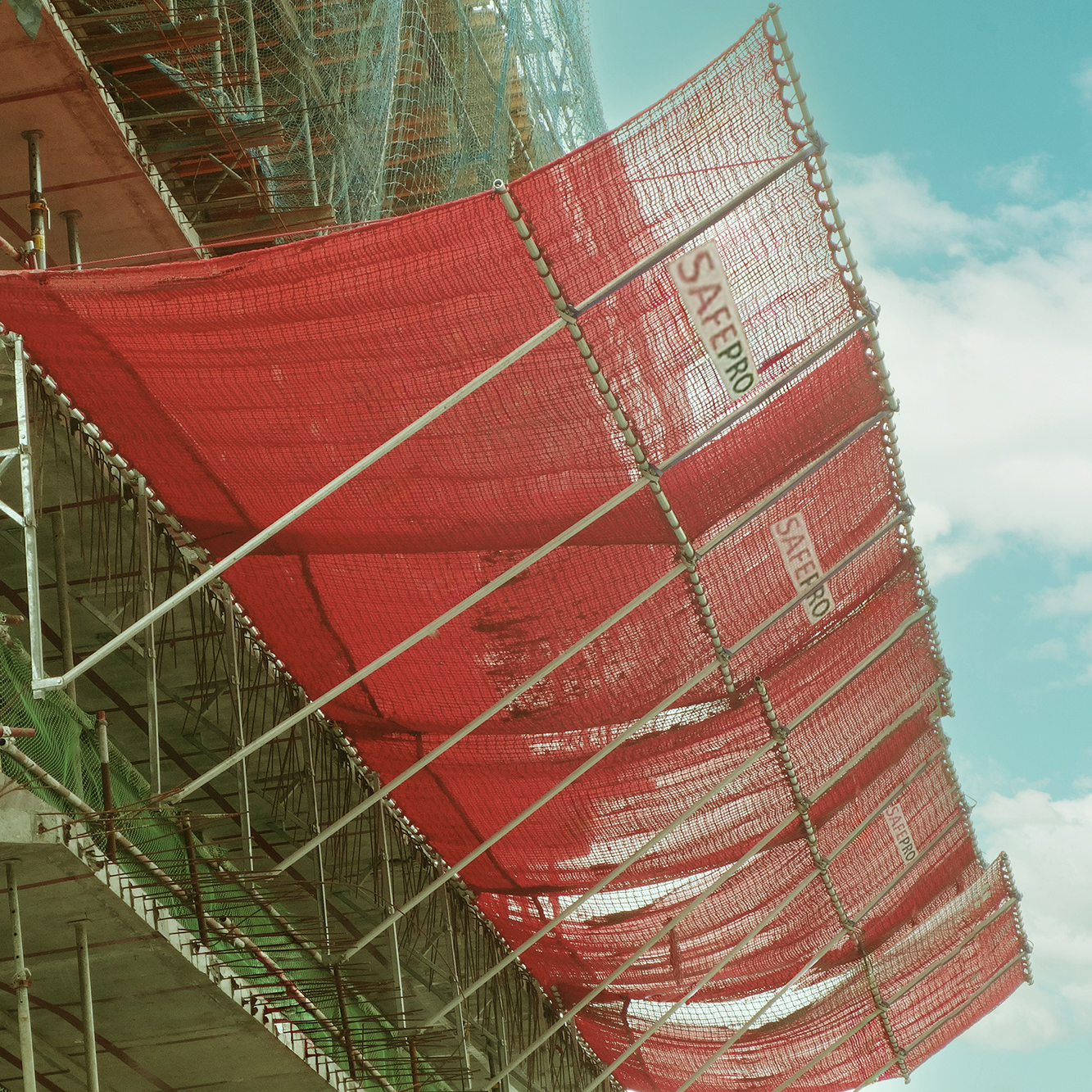

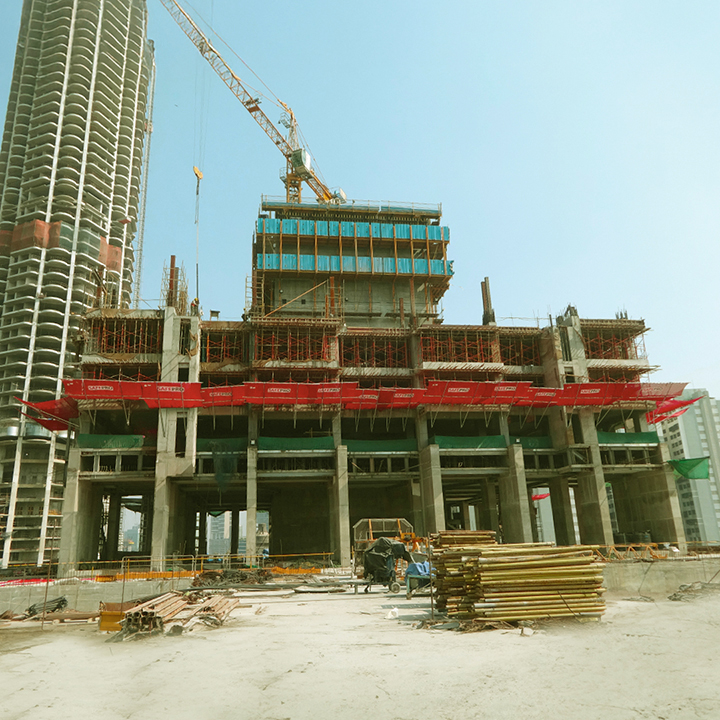

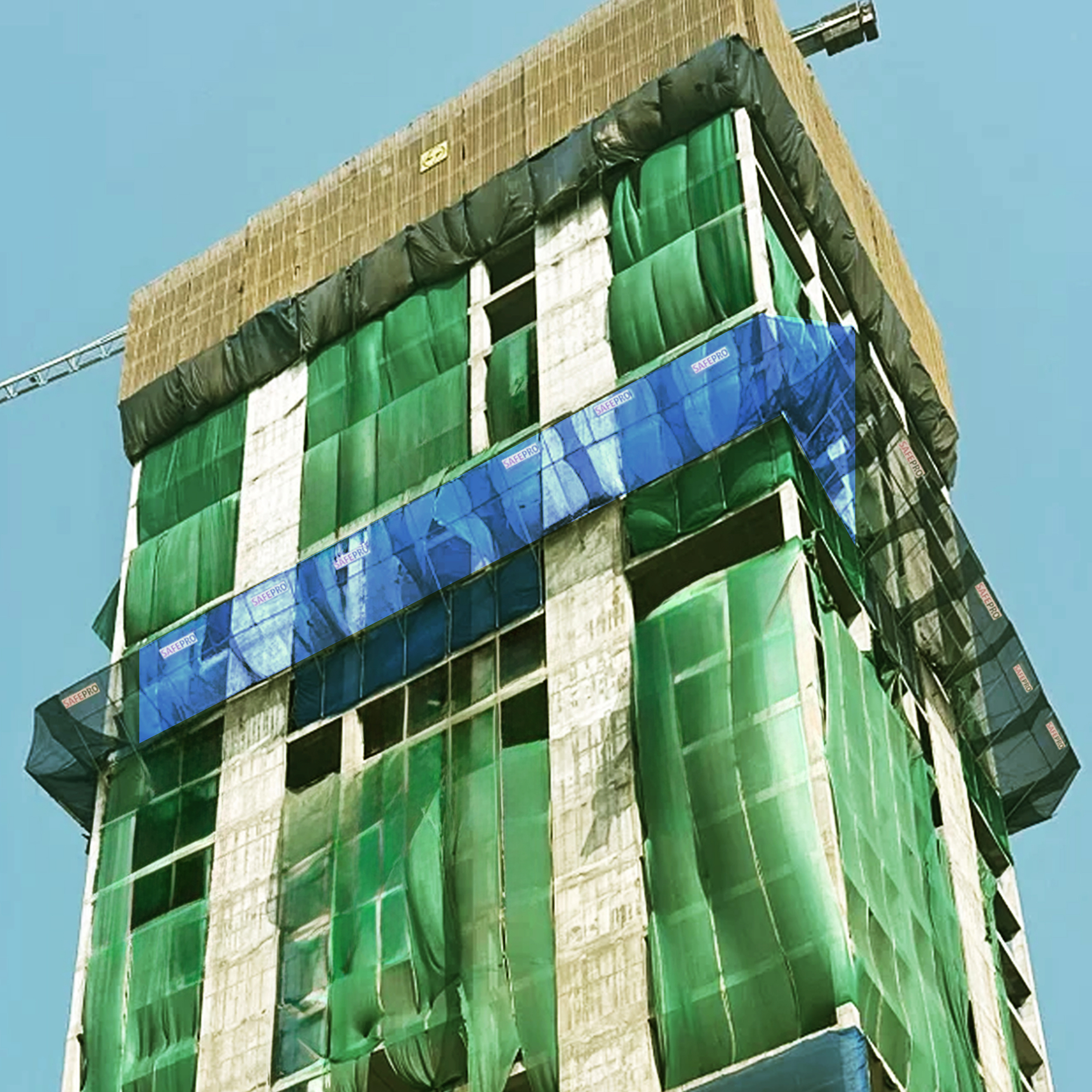

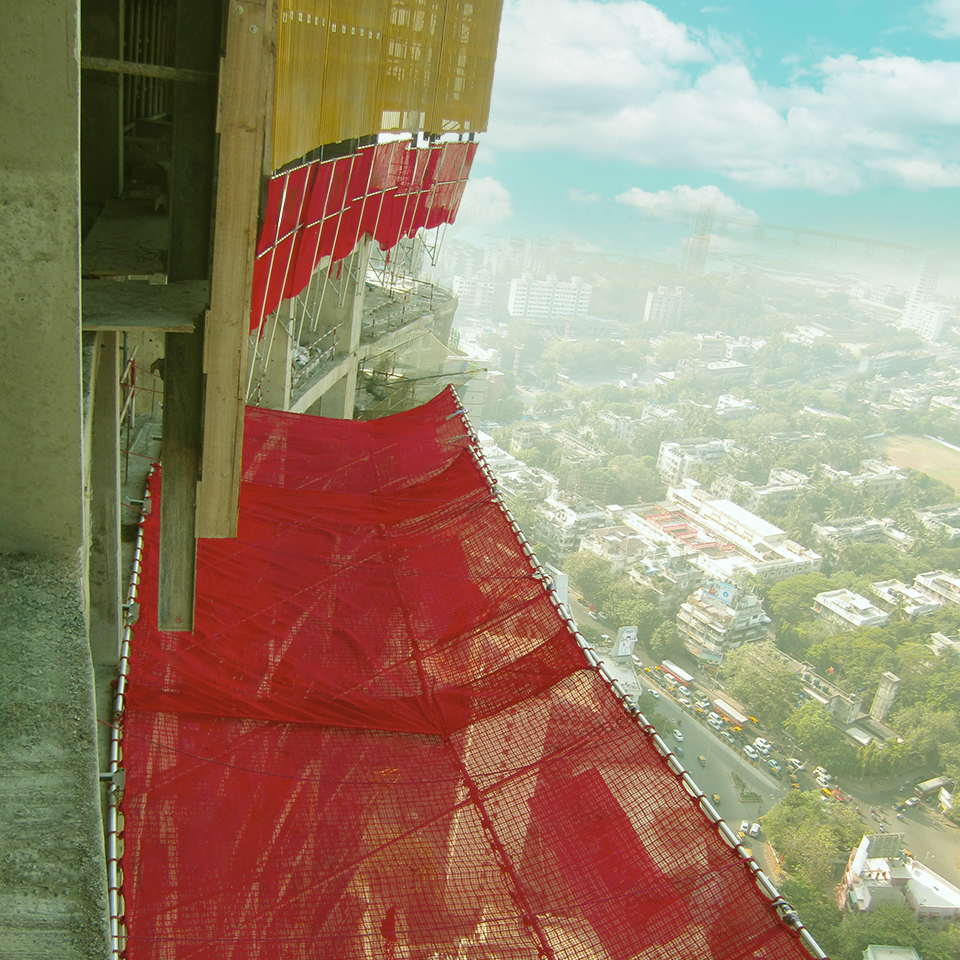

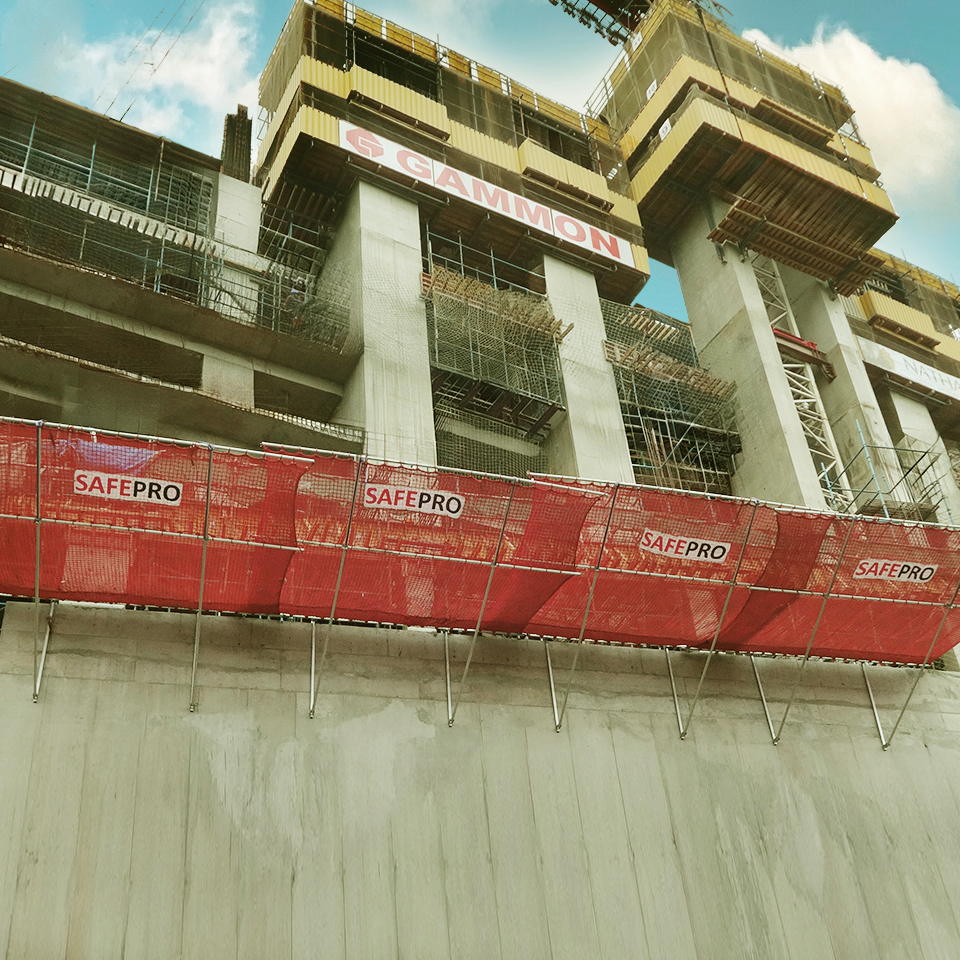

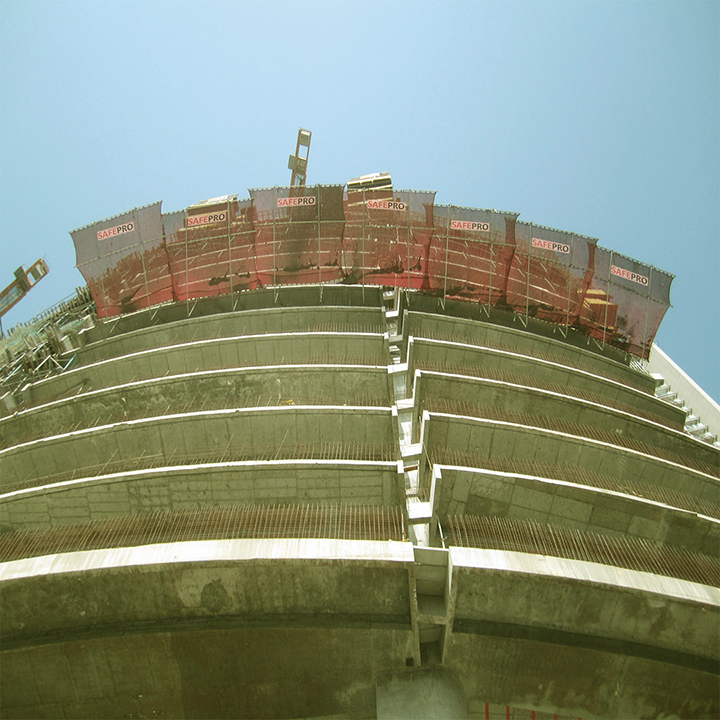

Projects
