Vertical Enveloping
Vertical Enveloping is a one-of-its-kind solution in construction safety that involves wrapping or “enveloping” an entire high-rise structure with high strength low weight fabric to eliminate fall risks, including even the smallest objects from falling or being dislodged during construction and finishing work.
It features an approximate 6-foot protrusion, supported by an intricate network of brackets, cantilever components, and wire ropes, extending from the outer edge of the structure. This design ensures smooth accessibility for gondolas/suspended platforms/cradles and tasks such as RCC construction, façade installation, painting, plastering, and more.

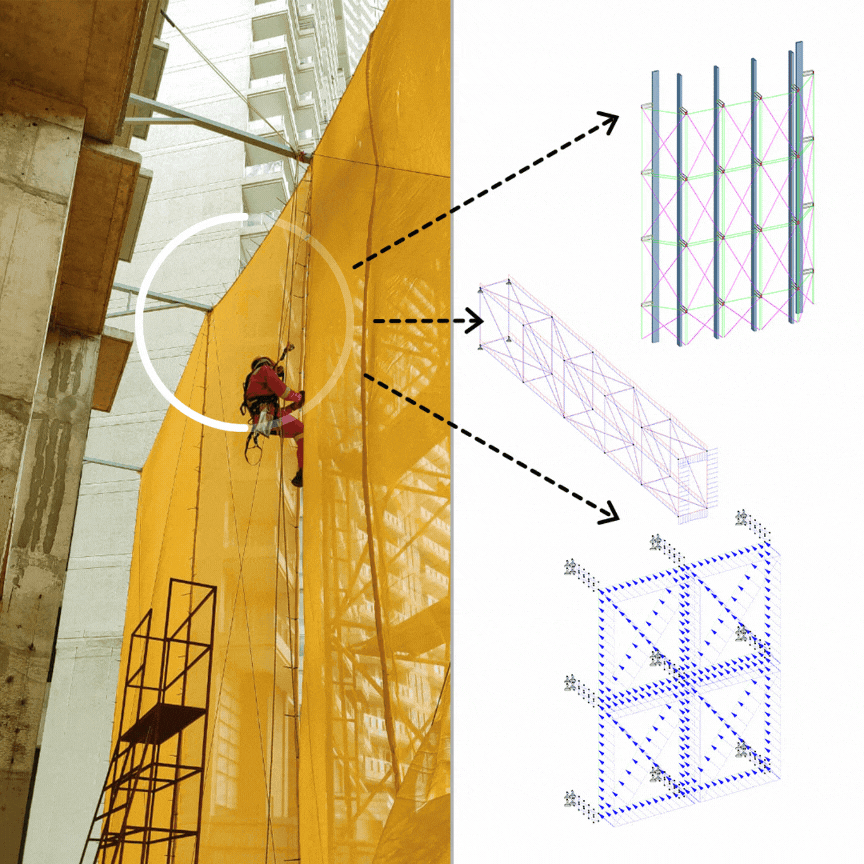

Designed with STAAD precision, focusing on wind parameters, as well as live and dead load predictions - Vertical Enveloping is truly a breakthrough for construction teams.
With over 12+ years of experience, SAFEPRO fuses engineering and unparalleled safety to design some of the safest fall protection systems, helping the vertically growing construction industry by eliminating hazardous falls.
SAFEPRO Vertical Enveloping prevents even the slightest chance of anything going wrong. SAFEPRO, join the safety breakthrough.
Installation Methodology
Vertical Enveloping can be installed in primarily two different ways.

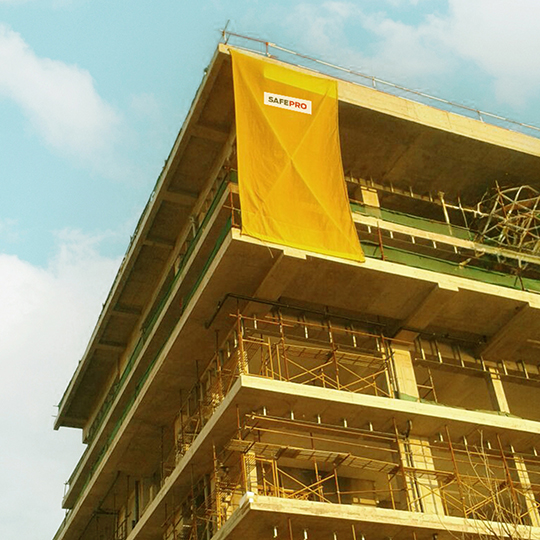

Direct installation on the face of beam structures.

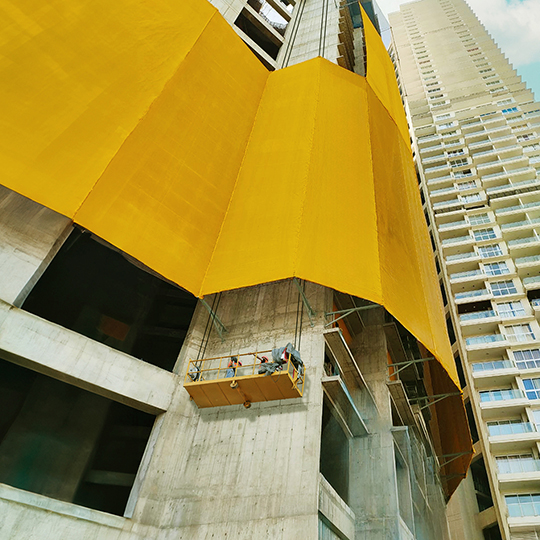

Use of customized walers/brackets to ensure swift gondola/suspended platform/cradle access.
Direct installation on the face of beam structures.
Use of customized walers/brackets to ensure swift gondola/suspended platform/cradle access.
Design Details
There’s not much special about these. Other than the fact that they are the revolution.

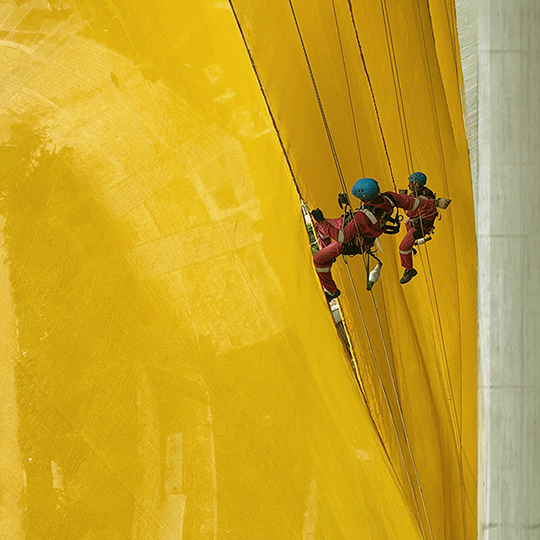

Specification | Details |
|---|---|
System Components | High strength low weight FR fabric Structured web of tensioned wire ropes Beam/column connecting plates for Type 1 installation Custom built cantilevered brackets for Type 2 installation |
Type 1 Installation | On the face of the slab |
Type 2 Installation | 1.8 mtr away from the periphery for gondola/ suspended platform/cradle movement |
High Strength Low Weight Fabric Properties | Fire retardant as per UL-94-2013: V0 standards Bursting strength: 2648 kN/m² Impact resistant as per ASTM D1709 |
Wind Speed | 44 mtr/sec (158.4 km/hr) |
Loading Code | IS 875 (Part I, II, III) |
Design Code | IS 800 (Working Stress Method) |
Structure Height | Upto 200 mtrs |
Safety Factor | 1.2 applied |
