Vertical Net Fan System
VNF (Vertical Net Fan) system is a meticulously engineered safety solution which vertically encloses the top three slabs of under construction buildings and structures.
With over 12+ years of experience, SAFEPRO fuses engineering and unparalleled safety to design some of the safest fall protection systems, helping the vertically growing construction industry by eliminating hazardous falls.
Our VNF makes working at height with faster slab cycles a breeze. SAFEPRO VNF creates impactful changes.

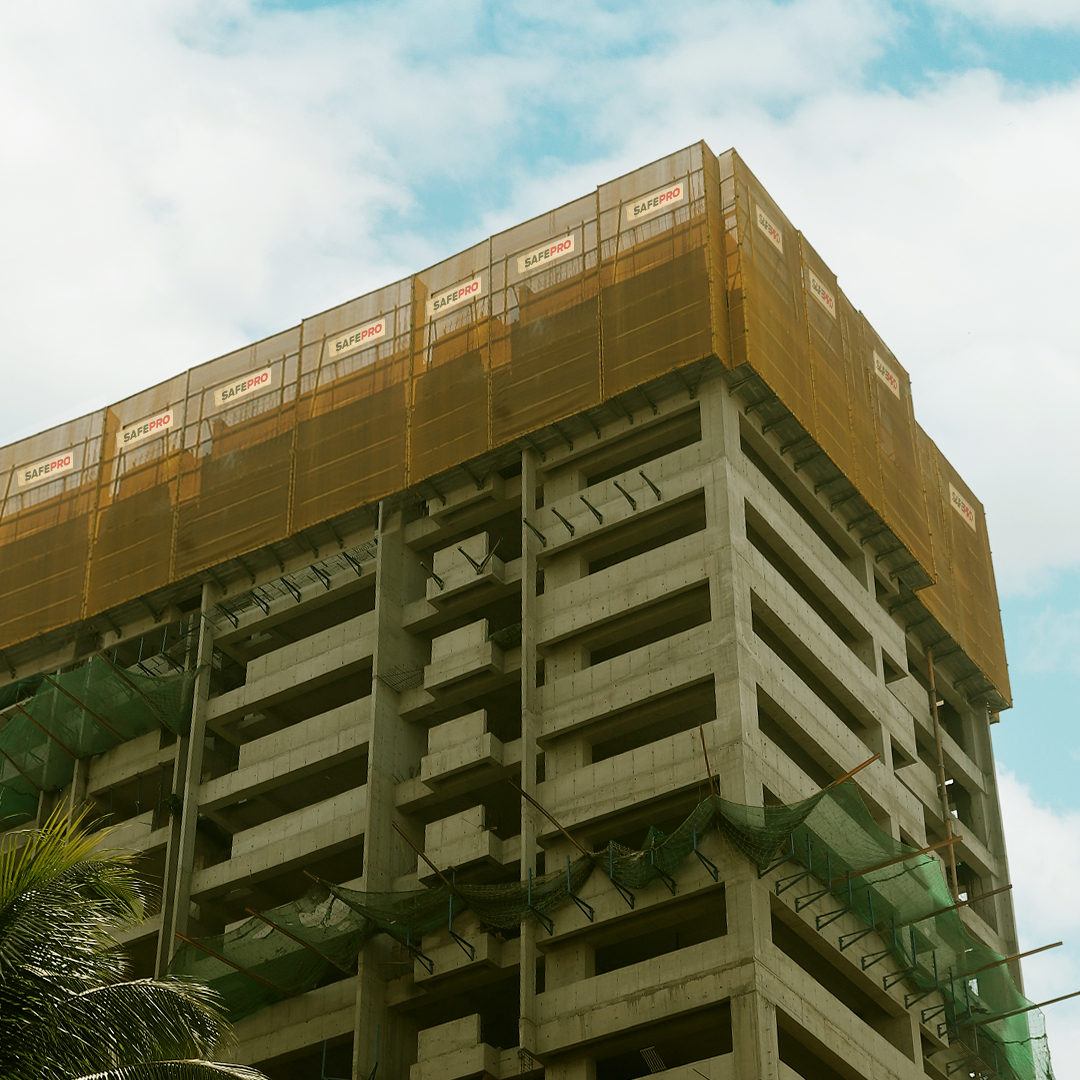

Technical Specifications
These specs are what powers SAFEPRO VNF to strike off the worry of falls from your risk assessment checklist. Go ahead and give the risk assessment score a solid 1.
Specification | Details |
|---|---|
Vertical Coverage | 9 mtr height (3 typical floors) |
Access Platforms | 900 mm working platforms |

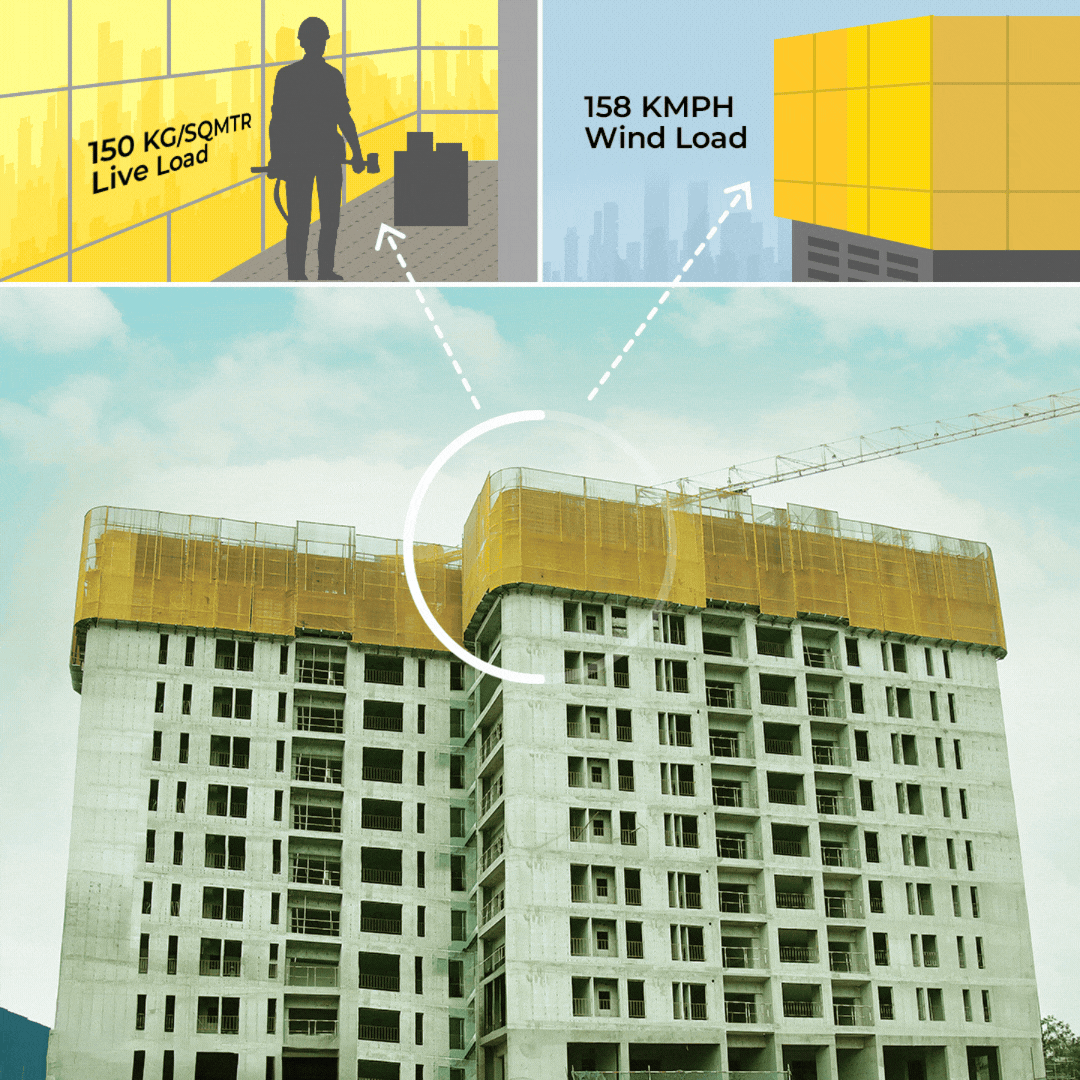

Live Load | 150 kg/m² |
Wind Speed | 44 mtr/sec (158.4 km/hr) |
Loading Code | IS 875 (Part I, II, III) |
Design Code | IS 800 (Working Stress Method) |
Screen Fabric MOC | High strength low weight FR fabric |
Frame MOC | Mild steel RHS & SHS |
Bracket MOC | Mild steel C-channel RHS & SHS |
Platform MOC | 1.6 mm thick GI embossed |
Features & Advantages

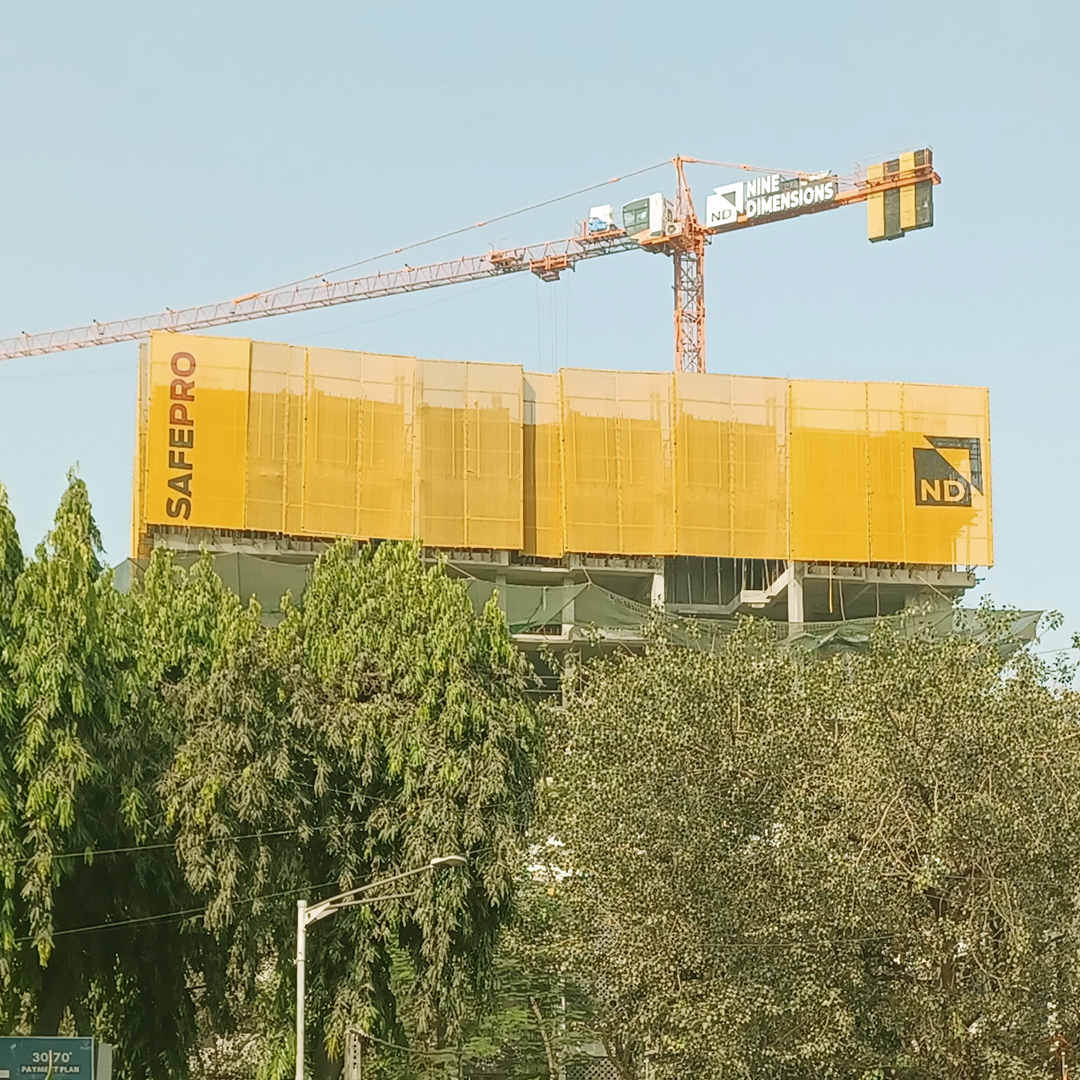

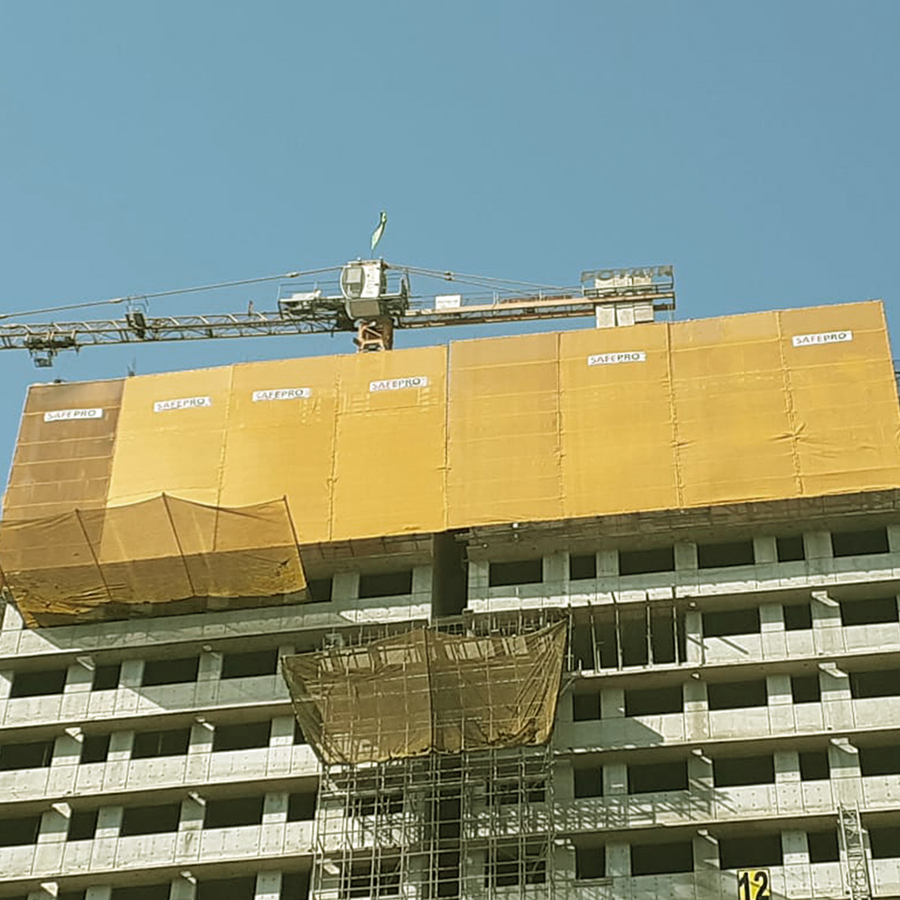

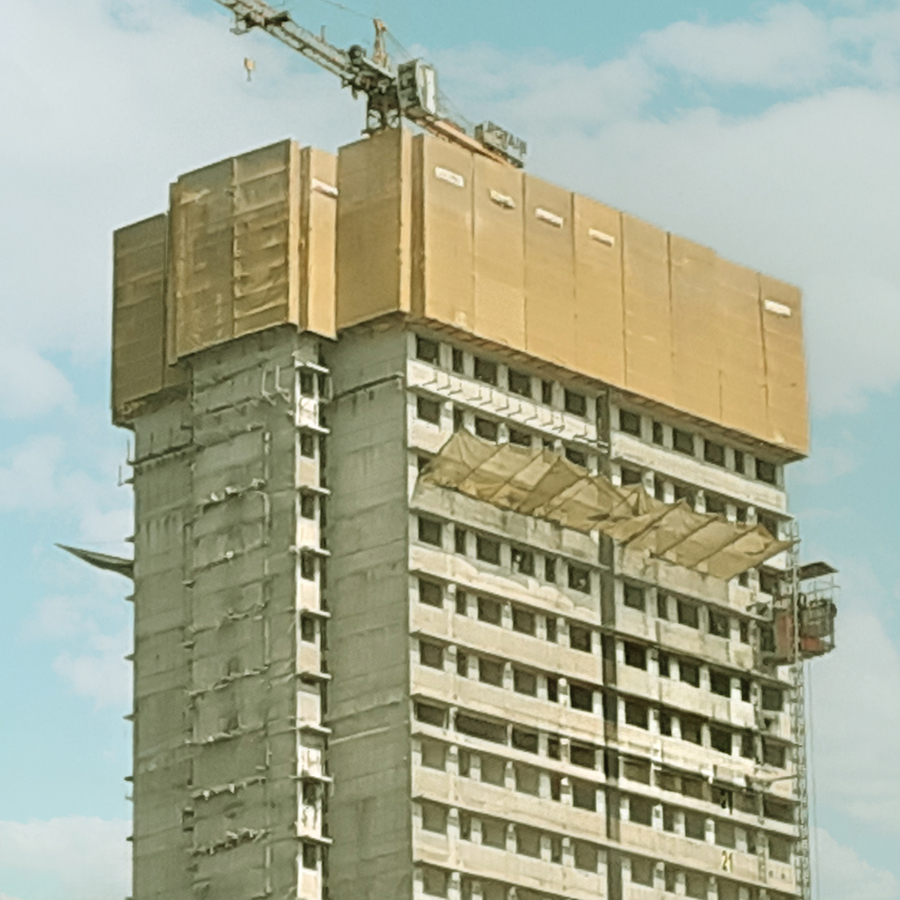

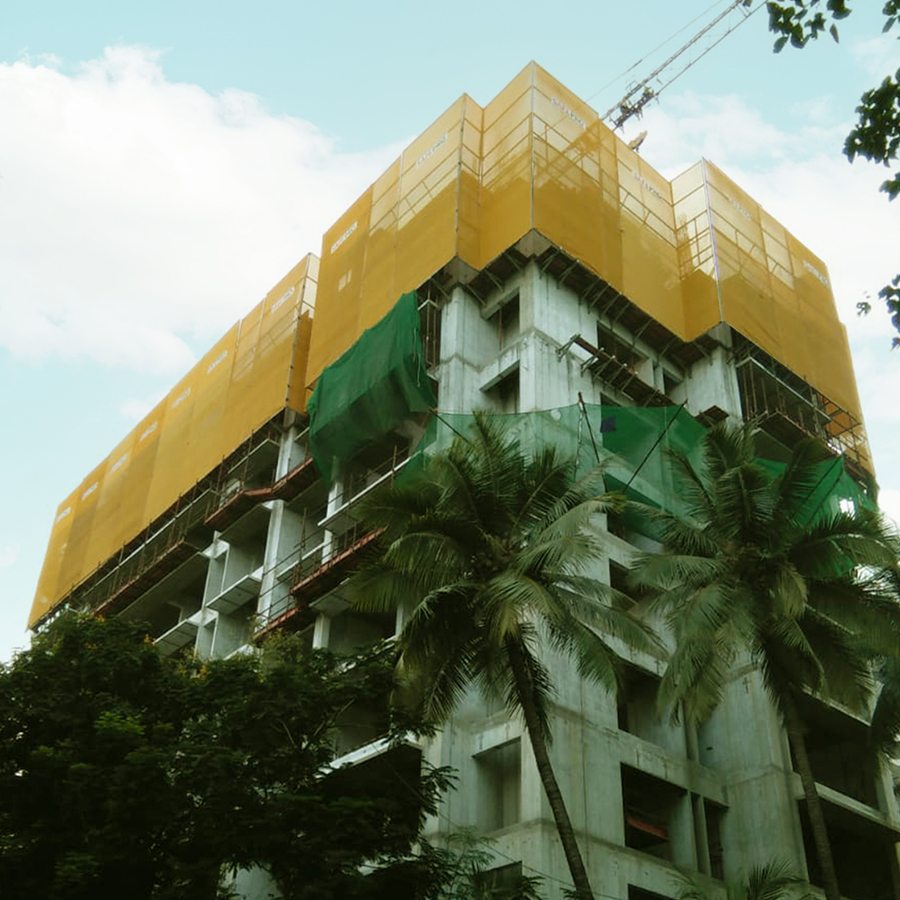

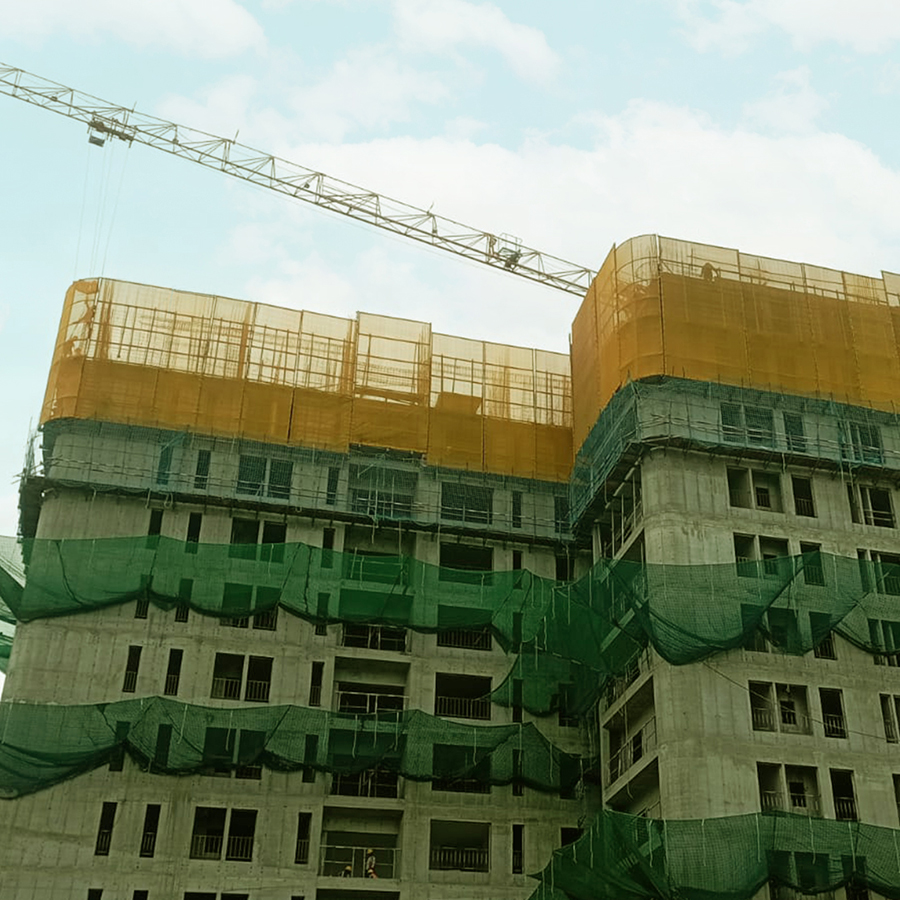

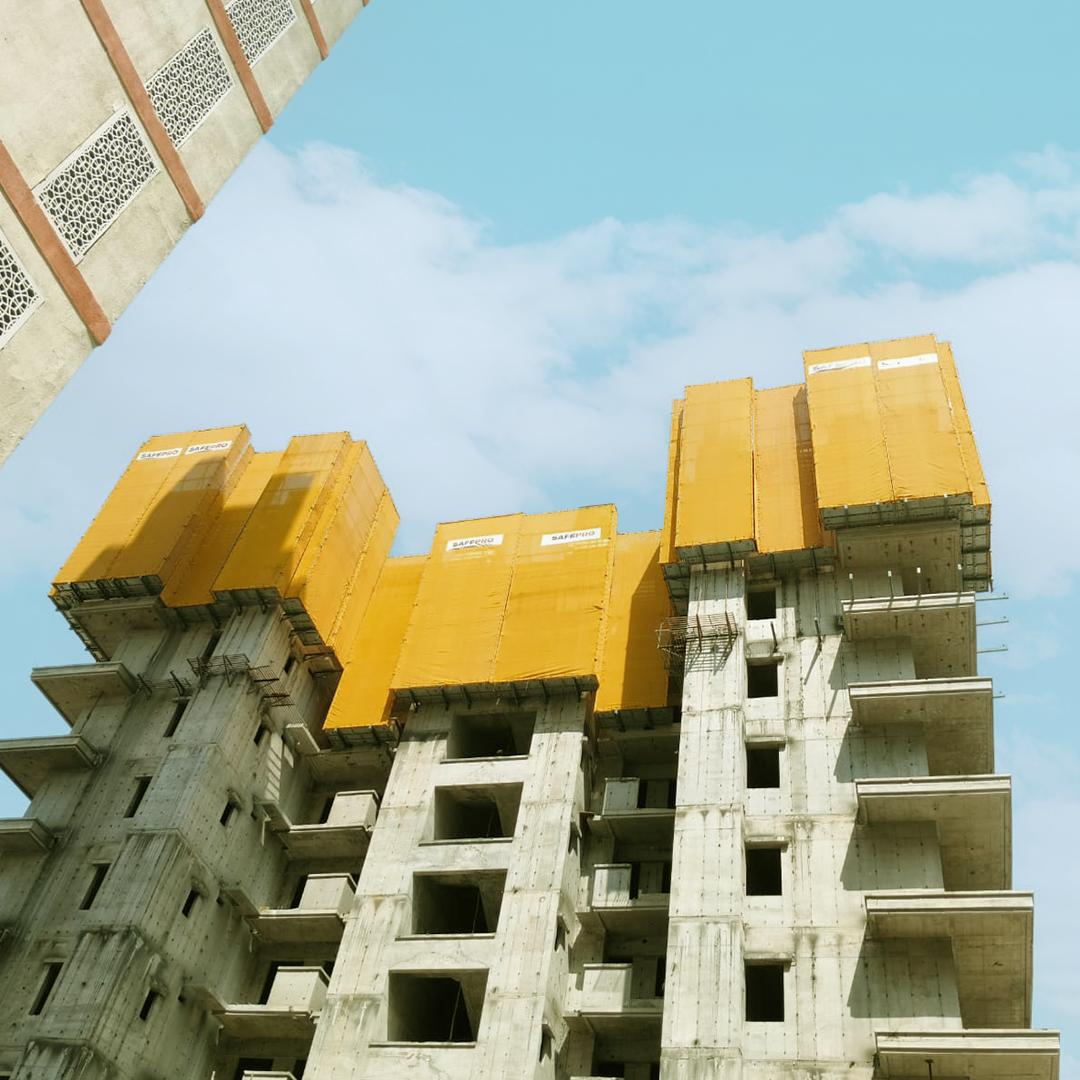

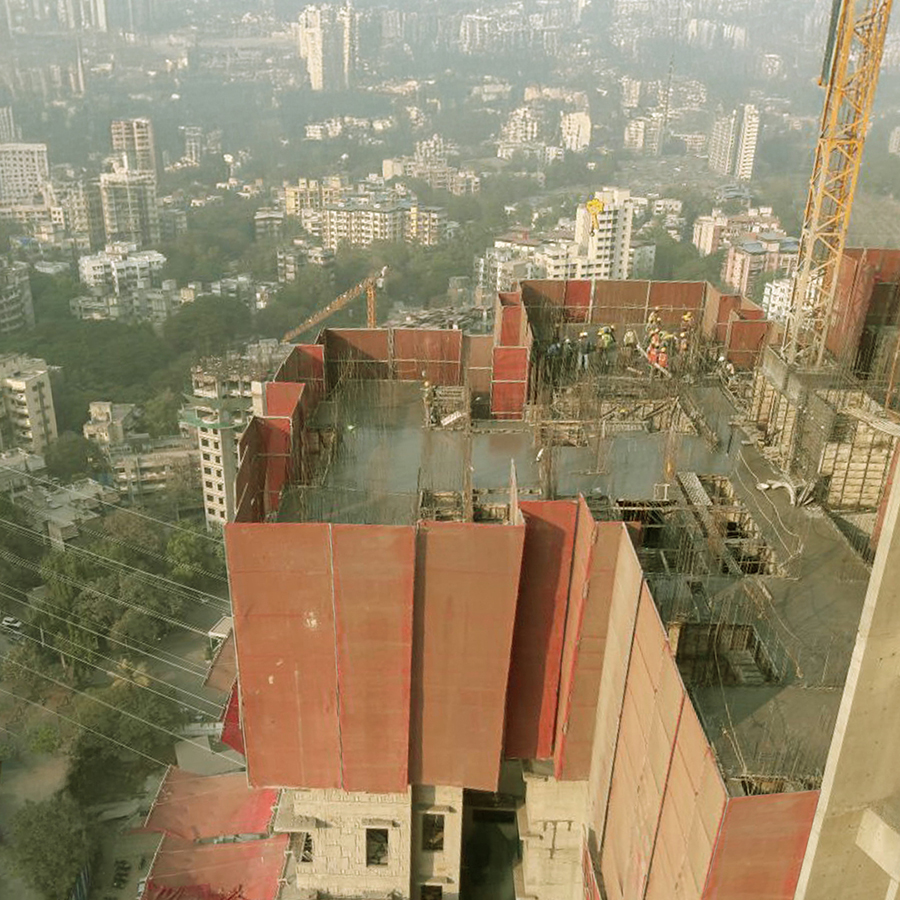

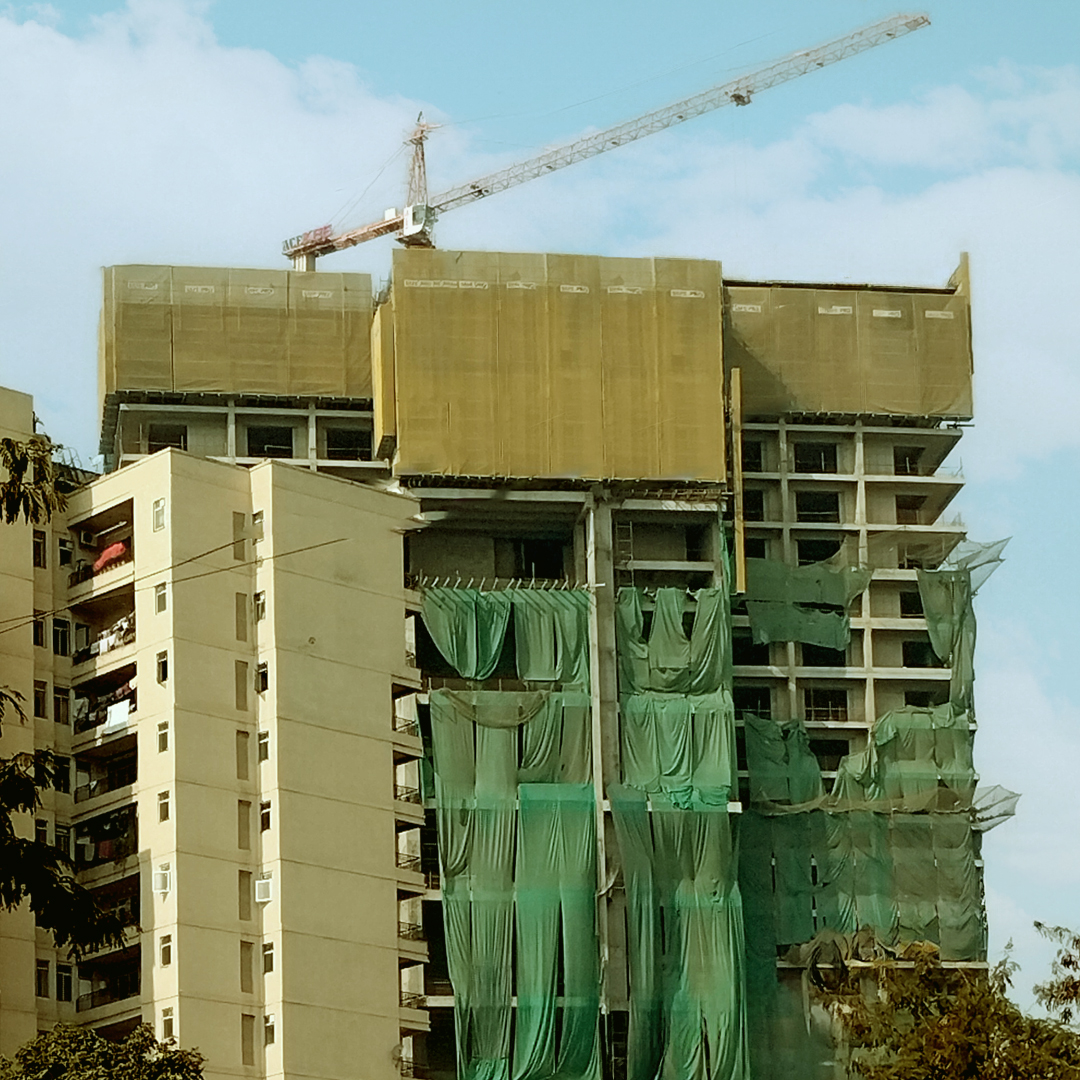

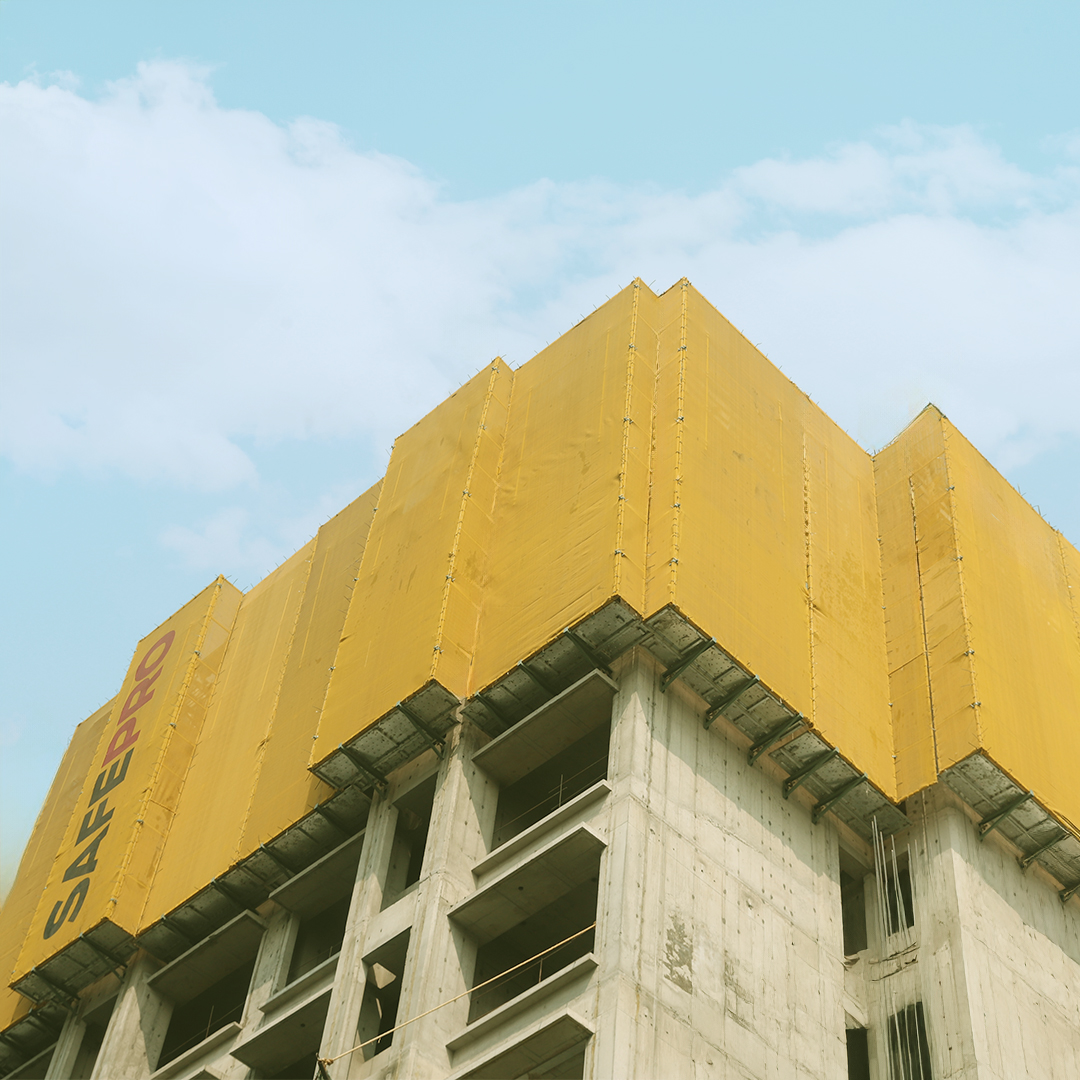

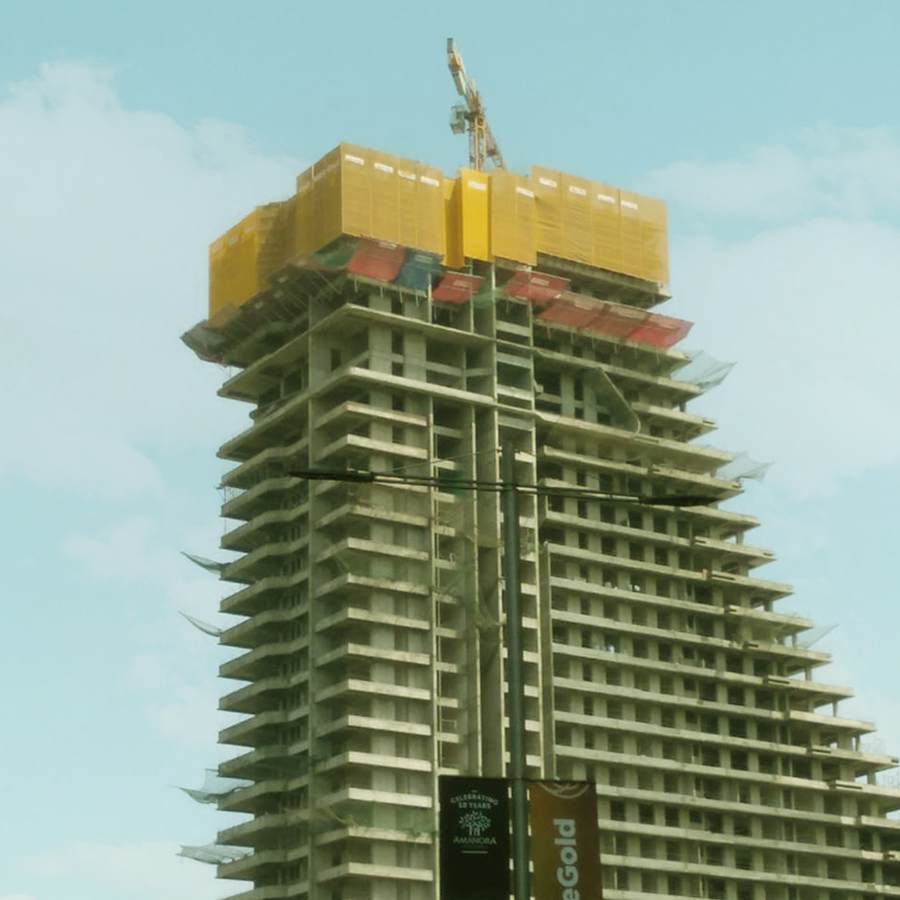

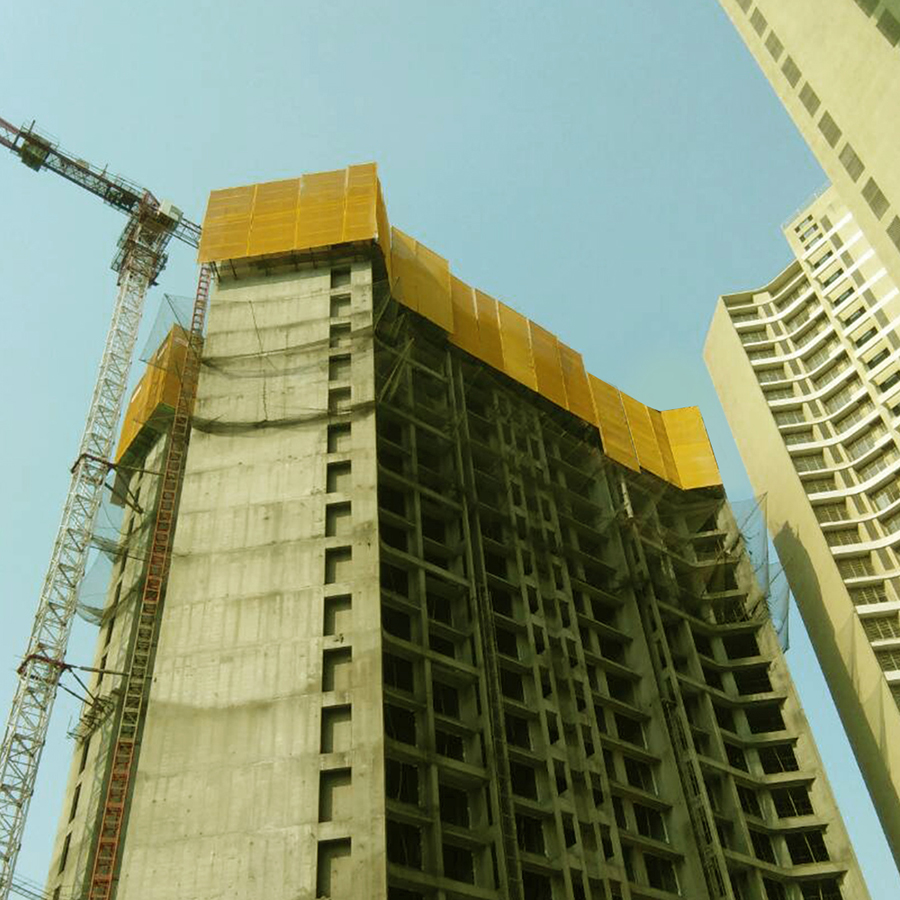

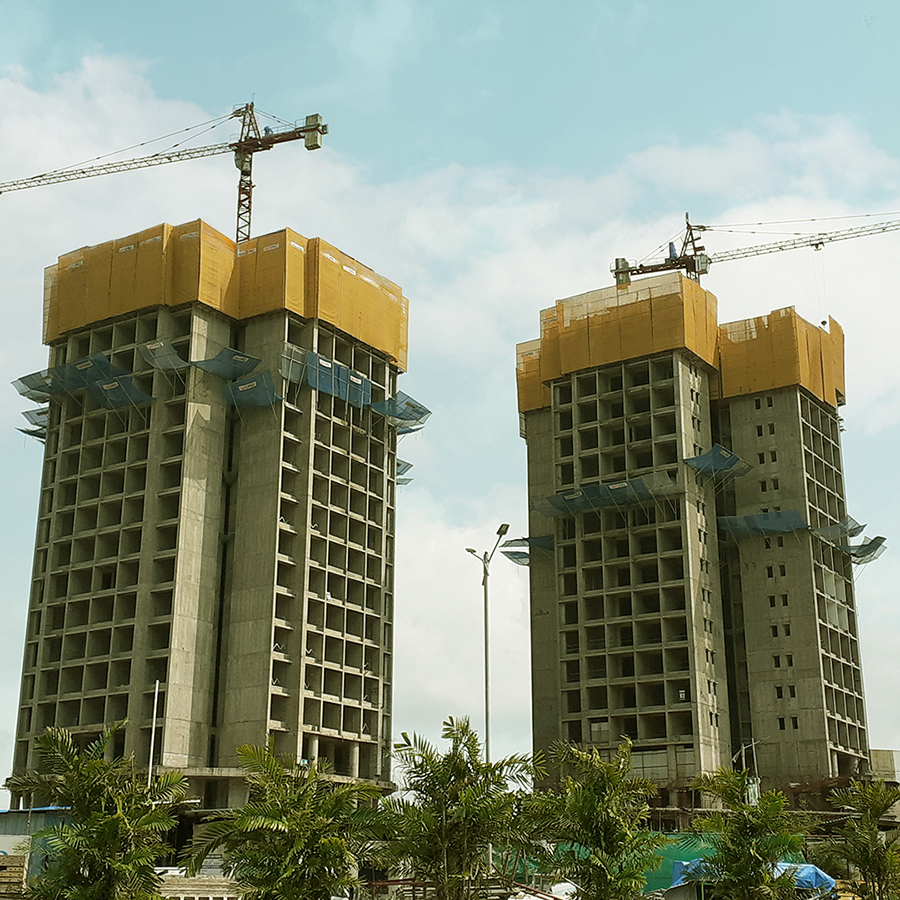

Projects
