Safety Screen Self-Climb
Safety Screen is a self-climbing safety solution which encloses the top three slabs of high-rise construction buildings to protect against fall risks. It uses a guided type mechanism with three working platform levels for increased accessibility and a hassle-free jumping experience.
With over 12+ years of experience, SAFEPRO fuses engineering and unparalleled safety to design some of the safest fall protection systems, helping the vertically growing construction industry by eliminating hazardous falls.
Such safety solutions are a necessity in a world with rapidly growing high-rises. SAFEPRO Safety Screen is the answer to fall challenges faced by construction teams.

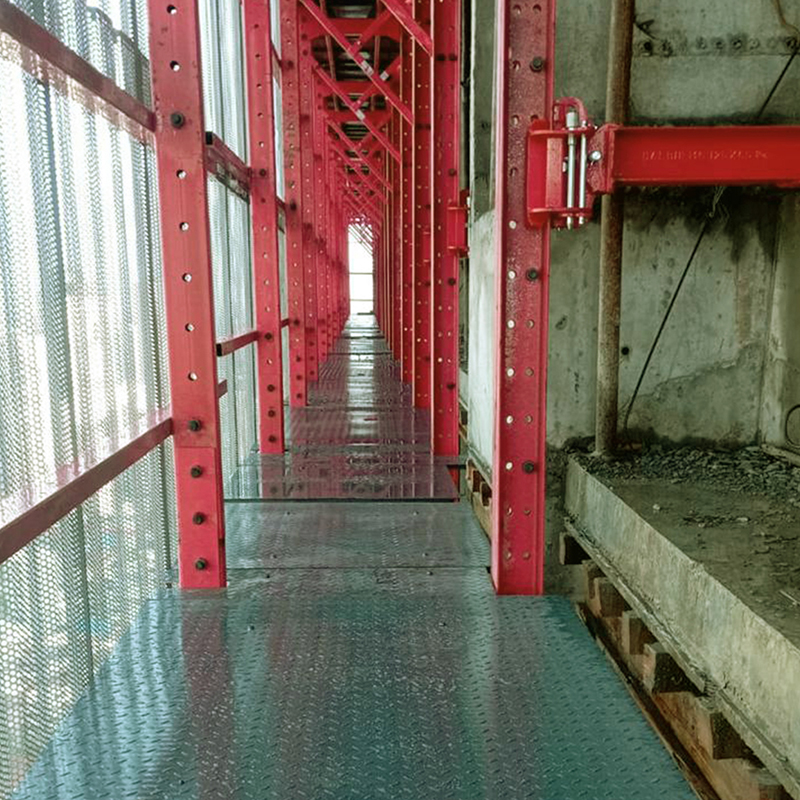

Technical Specifications
Our thirst for engineering excellence has led to these phenomenal specifications.
Specification | Details |
|---|---|
Screen Height | 8-12 mtrs or 3-4 floors |
Access Platforms | Three levels of working platforms |
Live Load | 150 kg/m² |
Wind Speed | Maximum wind speed resistance: up to 50 m/s (Beaufort Scale Level 12 - Hurricane Level) |
Loading Code | IS 875 (Part I, II, III) |
Design Code | IS 800 (Working Stress Method) |
Climbing | Guided type track based climb |
Climbing Mechanism | Hydraulic jacking system |
Screen MOC | Perforated sheet 0.55 mm thick with PPGL coating |
Frame MOC | Mild steel I-beam, C-channel, RHS & SHS |
Platform MOC | 1.8 mm thick GI embossed |
